Introduction of SNM2300S N-channel MOSFET
In DC-DC conversion, load switching, battery management, and portable device power supply applications, SOT-23 packaged small-signal MOSFETs are widely used solutions due to their small footprint, fast switching speed, and ease of PCB layout.
Semiware's SNM2300S N-channel MOSFET, in a standard SOT-23 package, is optimized for low-power power conversion and load switching applications and can serve as an alternative to the commonly available MCC, the SI2300S.
This article will provide a detailed comparison of the SNM2300S and SI2300S in terms of key parameters, electrical performance, and application scenarios.
Key Features of SNM2300S
- Compact SOT-23 package for easy PCB design and replacement applications
- 20V N-channel MOSFET solution suitable for a wide range of low-voltage switching circuits
- Low on-resistance (RDS(ON)) reduces conduction losses and improves efficiency
- Wide range of applications, including DC/DC converters, load switches, battery-powered devices, and portable electronics
SNM2300S vs SI2300S Key Parameter Comparison
| Parameter | Semiware SNM2300S | MCC SI2300S |
| Channel | N-Channel | N-Channel |
| Package | SOT-23 | SOT-23 |
| Drain-Source Voltage (VDS) | 20V | 20V |
| Gate-Source Voltage (VGS) | ±10V | ±12V |
| Continuous Drain Current (ID) | 4.5A | 4.3A |
| RDS(ON) @ VGS=4.5V | ≤40mΩ | ≤33mΩ |
| RDS(ON) @ VGS=2.5V | ≤60mΩ | ≤53mΩ |
| Pulsed Drain Current | 15A | 17.2A |
Why Can the SNM2300S be an Alternative to the SI2300S?
As shown in the table above,
- both the SNM2300S and SI2300S are 20V N-channel SOT-23 packaged small-signal MOSFETs, and they have a high degree of compatibility in key electrical parameters.
- Both products use a standard SOT-23 package, which simplifies the replacement design process.
Therefore, for consumer electronics, IoT devices, power management, and low-voltage switching applications using the SI2300S, the SNM2300S can be a reliable alternative.
➡️ For high-current continuous conduction, high-frequency high-speed switching, or high-reliability applications, engineers are advised to carefully compare the datasheet parameters and verify them through sample testing before replacement to ensure that the final application requirements are met.
SNM2300S Typical Applications
Consumer Electronics
- Smartphones
- Tablets
- Wearable Devices
- TWS Bluetooth Earbuds
Power Management
- DC/DC Converters
- Load Switches
- Battery Management Systems
- Power Distribution Circuits
IoT & Industrial Equipment
- Security Cameras
- Smart Lighting
- Network Equipment
- Industrial Controllers

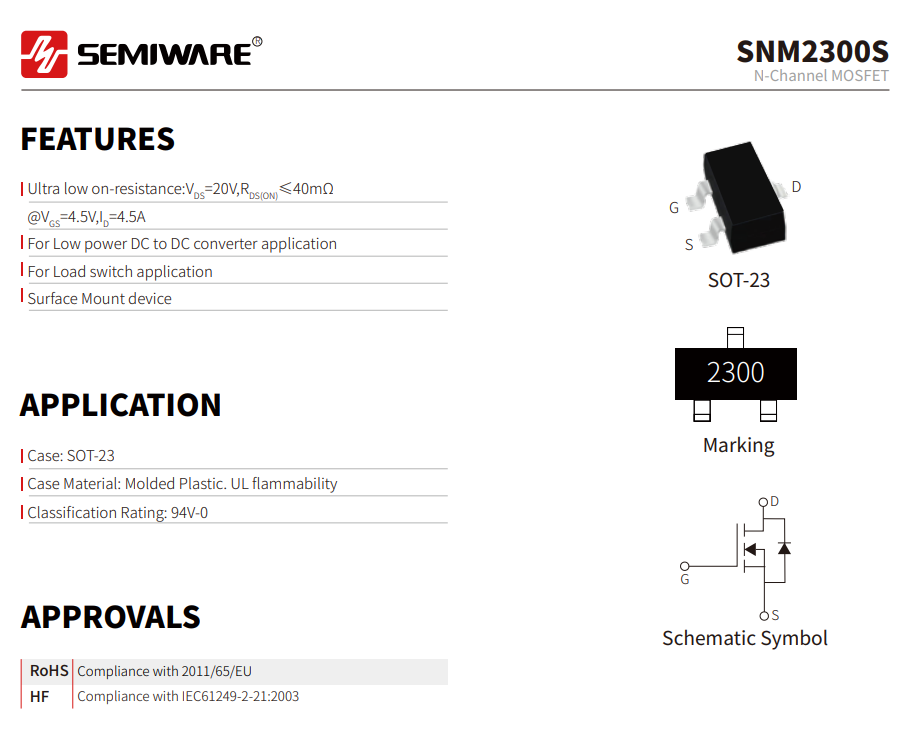

SNM2300S Datasheet
Conclusion
As electronic devices continue to evolve towards miniaturization, high integration, and high efficiency, selecting reliable and flexible component suppliers is becoming increasingly important.
For alternative evaluations, samples, or technical support, please contact us.
