Introduction

Smart meters used in electricity, water, and gas metering systems rely on sensitive MCUs, communication interfaces, and sensor circuits that can be exposed to electrostatic discharge (ESD), electrical fast transients (EFT), and surge events.

Effective smart meter circuit protection requires different approaches for power inputs, wired communication ports, and sensor interfaces. TVS diodes and ESD protection">ESD protection devices can help suppress transient overvoltages when selected according to the circuit's operating voltage, transient exposure, and protection requirements.

This article outlines key protection points for smart meters and introduces Semiware TVS and ESD devices for different circuit applications.

Smart Meter ESD and Surge Protection: TVS Diode Selection Guide-Protection Devices-TVS Diodes-ESD Protection devices-Gas Discharge Tube-Thyristor-Pled Protectors-Mov

I. Why Do Smart Meters Need ESD and Surge Protection?

A reasonable ESD and surge protection design has the following benefits:

  1. Ensuring Metering Accuracy

Surges and electrostatic interference can lead to abnormal sampling, data errors, or even system restarts.

Protective devices can reduce the impact of transient voltages on core circuits, ensuring stable and reliable metering data.

  1. Extending Equipment Lifespan

Smart meters typically require long-term operation, and some devices are difficult to maintain after installation.

TVS diodes and ESD protection">ESD protection devices can quickly absorb transient energy, reducing damage to electronic components and improving product reliability.

  1. Enhancing Communication System Stability

Smart meters transmit data using the following methods:

  • RS485
  • RS232
  • USB
  • NB-IoT
  • WiFi
  • Bluetooth

Communication interfaces are susceptible to external static electricity and surges, requiring dedicated interface protection devices.

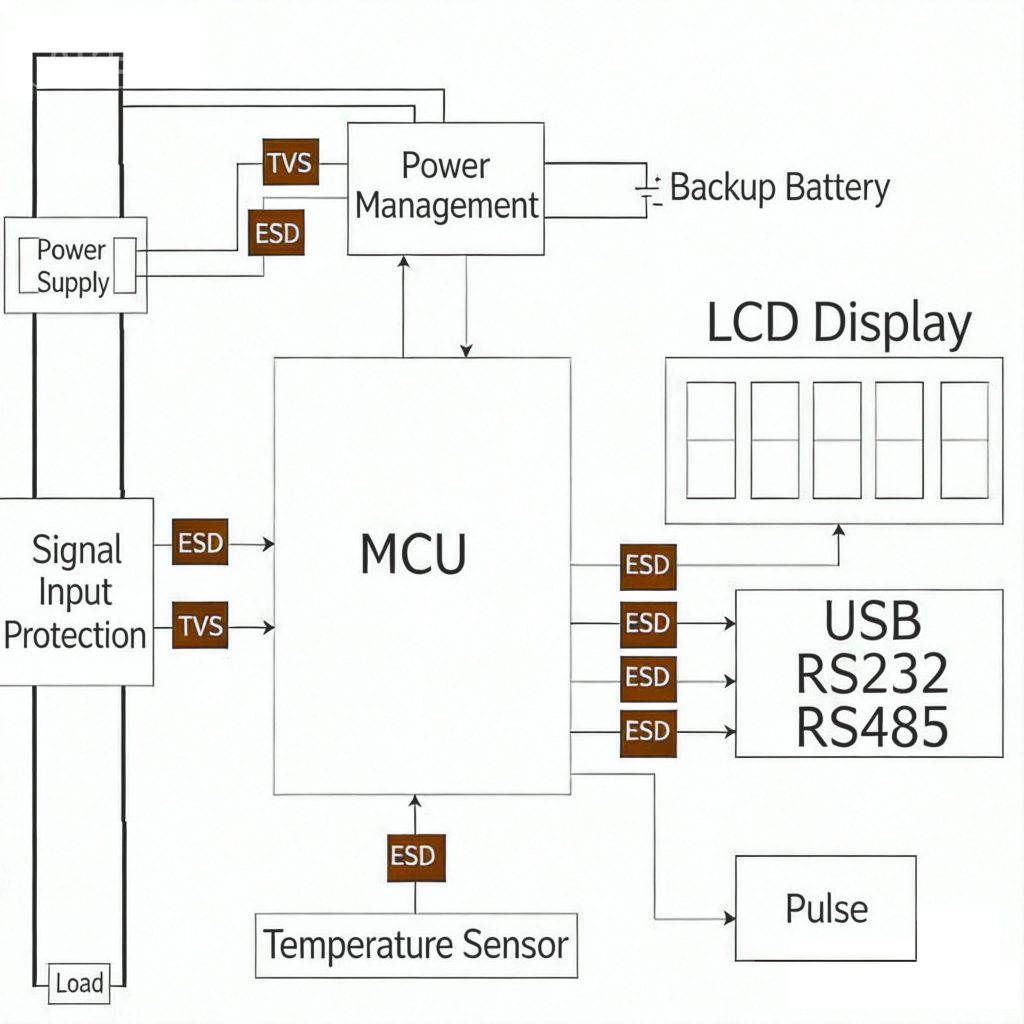

II. Key Circuit Protection Points in Smart Meters

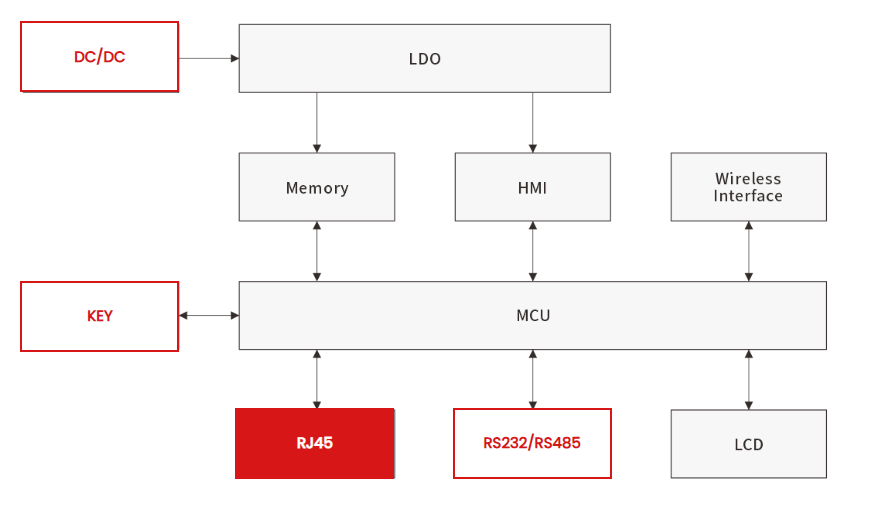

smart meter emc design smart meter esd protection smart meter surge protection

2.1 Smart Electricity Meter

    Smart meters are an important component of the smart grid, enabling:

    • Automatic electricity consumption recording
    • Remote meter reading
    • Two-way communication
    • Energy management

    Main protection location: Power input

    Risks:

    • Grid surge
    • Lightning strike
    • EFT

    2.2 Smart Gas Meter

      Smart gas meters typically utilize:

      • Lithium battery power
      • Wireless communication
      • Valve control
      • Gas sensing

      Main concerns:

      • Low power consumption
      • Battery protection
      • Sensor interface protection

      2.3 Smart Water Meter

        Smart water meters utilize:

        • Ultrasonic flow detection
        • Wireless communication
        • Remote data transmission

        Main protection:

        • Ultrasonic sensor interface
        • MCU power supply
        • Communication module

        III. Semiware Smart Meter ESD Protection Devices

        Part NumberDescriptionPackageApplication
        SEULC0524P5V, 4-channel, 0.3pF, Air ±30kV / Contact ±30kVDFN2510-10LUSB and high-speed interface ESD protection">ESD protection

        SE10F10B5.0A
        		5V, 1-channel bidirectional, 15pF, Air ±25kV / Contact ±25kV DFN1006-2L5V sensor interface protection
        SE5D10B5.0AH5V, 1-channel bidirectional, 25pF, Air ±30kV / Contact ±30kV SOD-523Sensor interface ESD protection">ESD protection
        SM7127V/12V, bidirectional, 55pF, ±25kV ESD protection">ESD protectionSOT-23RS485 communication interface protection
        SE23T35B15B (SMC15)15V, bidirectional, 68pF, Air ±15kV / Contact ±8kV SOT-23RS232 interface protection
        SE10F10B5.0MA5V, 1-channel bidirectional, 0.25pF, Air ±15kV / Contact ±25kV DFN1006-2LWireless communication interface protection

        IV. Semiware Smart Meter Surge Protection Devices

        Part NumberSMAJ6.5CASMBJ15CASMCJ28CA
        Description6.5V, 400W TVS Diode15V, 600W TVS Diode28V, 1500W TVS Diode
        Peak Pulse Current35.7A24.6A33.1A
        Channel1 Channel1 Channel1 Channel
        PackageSMASMBSMC
        Application5V power supply surge protection12V power supply surge protection24V power supply surge protection

        Conclusion

        By implementing appropriate electrostatic discharge (ESD) and surge protection solutions in power supplies, communication interfaces, and sensor connections, smart meter manufacturers can effectively reduce failures caused by transient voltage events and improve product reliability under various operating environments.

        With its extensive experience in circuit protection solutions, Semiware helps smart meter designers develop safer, more reliable, and more durable products.

        Contact Semiware for customized smart meter protection solutions and component selection support.
