USB Type-C VBUS Protection Solutions for Fast-Charging Smartphones: Three Recommended High-Power SOD-123FL TVS Diodes

I. Rising Fast-Charging Power Levels Bring Higher Surge Challenges for USB Type-C VBUS

As fast-charging power levels increase, surge testing requirements for smartphone USB Type-C VBUS lines are becoming increasingly stringent, necessitating higher-performance protection devices.

II. Why Do Fast-Charging USB Type-C VBUS Lines Require TVS Diode Protection?

The USB Type-C port serves as the direct interface between the smartphone and the external environment, making it the most vulnerable entry point for electrostatic discharge (ESD) and surges.

During daily use:

• Electrostatic discharge (ESD) can easily occur when users plug in or unplug charging cables;
• Voltage fluctuations may arise the moment the charging cable makes contact;
• Substandard or incompatible charging equipment can introduce abnormal surges.

Although these transient events are extremely brief in duration, their peak voltages can reach several thousand volts.

TVS (Transient Voltage Suppression) diodes activate rapidly during transient events, clamping excessive voltage to a safe range and shunting surge energy to ground, thereby protecting sensitive downstream chips.

For fast-charging smartphone VBUS lines, TVS diodes must meet the following criteria:

• High surge withstand capability
• Low clamping voltage
• Low leakage current
• Compact package requirements

III. Advantages of Semiware’s SOD-123FL Series High-Power TVS Diodes

To address the power protection needs of fast-charging USB Type-C VBUS lines, Semiware recommends three high-power TVS diodes in the SOD-123FL package:

SE1D500B15A
SE1D600B12A
SE1D740B24A

Advantages:

1. High-power design to withstand rigorous surge testing

The SOD-123FL series utilizes a highly reliable package structure, delivering high surge withstand capability within a compact footprint:

Peak Pulse Power:

• SE1D500B15A: 5000W
• SE1D600B12A: 6000W
• SE1D740B24A: 7400W

Peak pulse current up to 210A

Effectively protects USB Type-C VBUS power lines, even against transient surges caused by frequent hot-plugging.

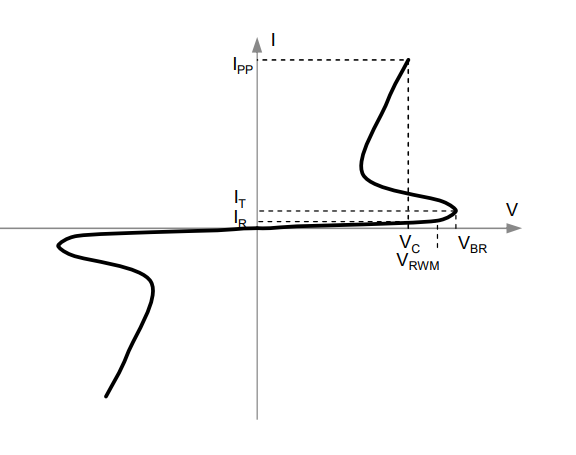

2. Flat-Clamp technology for reduced residual voltage

As internal chips in fast-charging smartphones become increasingly sophisticated, high-power protection capability alone is insufficient.

The clamping voltage (VC) generated when a TVS diode absorbs a surge directly impacts the safety of downstream ICs.

Semiware’s SOD-123FL series employs Flat-Clamp technology to:

• Provide a flatter clamping curve;
• Lower transient residual voltage;
• Minimize the impact of temperature fluctuations on protection performance.

Lower VC helps mitigate the impact of surge events on charging ICs and power management chips.

3. Robust ESD protection capability

• ±30kV air discharge;
• ±30kV contact discharge.

Meets the interface ESD protection requirements for high-reliability consumer electronics.

IV. Recommended SOD-123FL TVS Diodes for USB-C VBUS Protection

V. Applications for High-Power SOD-123FL TVS Diodes

These high-power SOD-123FL TVS diodes are suitable for the following applications:

• Smartphone USB Type-C VBUS protection
• Power input protection for fast-charging smartphones
• PD (Power Delivery) fast-charging devices
• Tablets
• Mobile terminal devices
• Other USB-C power interface applications

High-surge-capability TVS protection solutions can further enhance the reliability of end products, particularly in markets such as India and Africa, where operating environments are challenging, power grid quality is poor, and the risk of electrostatic discharge (ESD) is high.

VI. Summary

As the charging power of smartphones continues to increase, the USB Type-C VBUS has become a critical power interface requiring robust protection.

Compared to standard TVS components, SOD-123FL high-power TVS diodes offer superior surge withstand capability, lower clamping voltage, and enhanced ESD protection performance, all within a compact package.

Please contact the Semiware technical team for assistance with selecting the appropriate TVS components for specific fast-charging designs.
