Introduction
Small-signal MOSFETs are frequently used in consumer electronics, small control boards, and portable devices for power control, load switching, and logic signal driving.
SI2102 is a common 20V N-Channel MOSFET in a small SOT-323 package, widely used in TTL/CMOS interface control, relay driving, LED control, and battery-powered devices.
However, in actual project development and mass production, engineers often encounter the following challenges:
- Unstable original manufacturer delivery times
- BOM cost optimization requirements
- Multiple supplier alternatives required
- Verification of domestic alternatives
To address these needs, Semiware SNM2102 provides a compatible alternative to the SI2102.
I. SNM2102 vs SI2102 Key Parameter Comparison
| Parameter | Semiware SNM2102 | MCC SI2102 |
| Channel | N-Channel | N-Channel |
| Package | SOT-323 | SOT-323 |
| Drain-Source Voltage | 20V | 20V |
| Gate-Source Voltage | ±8V | ±8V |
| Continuous Drain Current | 2.1A | 2.1A |
| RDS(ON) @ 4.5V | Typ. 59mΩ | Typ. 50mΩ |
| RDS(ON) @ 2.5V | Typ.70mΩ | Typ.60mΩ |
From a specifications perspective:
- 20V N-channel MOSFETs;
- SOT-323 packages;
- Designed for miniaturized, low-voltage switching applications.
Therefore, in many low-power, low-current applications, the SNM2102 can be used as a design verification alternative to the SI2102.
II. Why Can the SNM2102 Replace the SI2102?
- Voltage Rating Matching
When replacing a MOSFET, the voltage rating must first be confirmed.
Both SNM2102 and SI2102 are N-Channel MOSFETs with VDS = 20V.
- Package Compatibility for Easy PCB Replacement
Both SNM2102 and SI2102 are in SOT-323 packages, requiring no changes to the PCB design.
- Low On-Resistance Suitable for Low-Power Switching Applications
MOSFET On-Displacement Formula: P = I² × RDS(ON)
The lower the RDS(ON), the less heat the MOSFET generates in the on-state.
SNM2102 can meet the needs of a wide range of low-voltage, low-power switching applications.
III. SNM2102 MOSFET Application Scenarios
- MCU Control of Load Switches
LED switch control; Buzzer control; Small relay drive; Solenoid valve control.
These applications typically operate in an on/off control mode, where the MOSFET is primarily used as an electronic switch, and the dependence on extremely low RDS(ON) is relatively low.
- Battery-Powered Electronic Devices
Portable devices; Smart hardware; Small controllers; Consumer electronics.
These applications typically prioritize:
PCB space; Low power consumption; Logic level drive capability.
The SOT-323 package is suitable for space-constrained designs.
- Power Path Control and Load Management
Power-on/off control; Power switching in battery-powered systems; DC power management.
If the actual operating current is within the device's capabilities and has been verified by temperature rise, the SNM2102 can be used as a replacement for the SI2102.
- Logic Signal Switching
TTL/CMOS interface control; Small signal switching; Control line isolation.
These applications typically have low current draw and low requirements for conduction losses, thus the replacement risk is low.
💡 Note: For high-current continuous conduction applications (such as motor drives, high-power loads) and high-reliability applications, it is recommended to verify the datasheet parameters and perform actual measurements with samples.

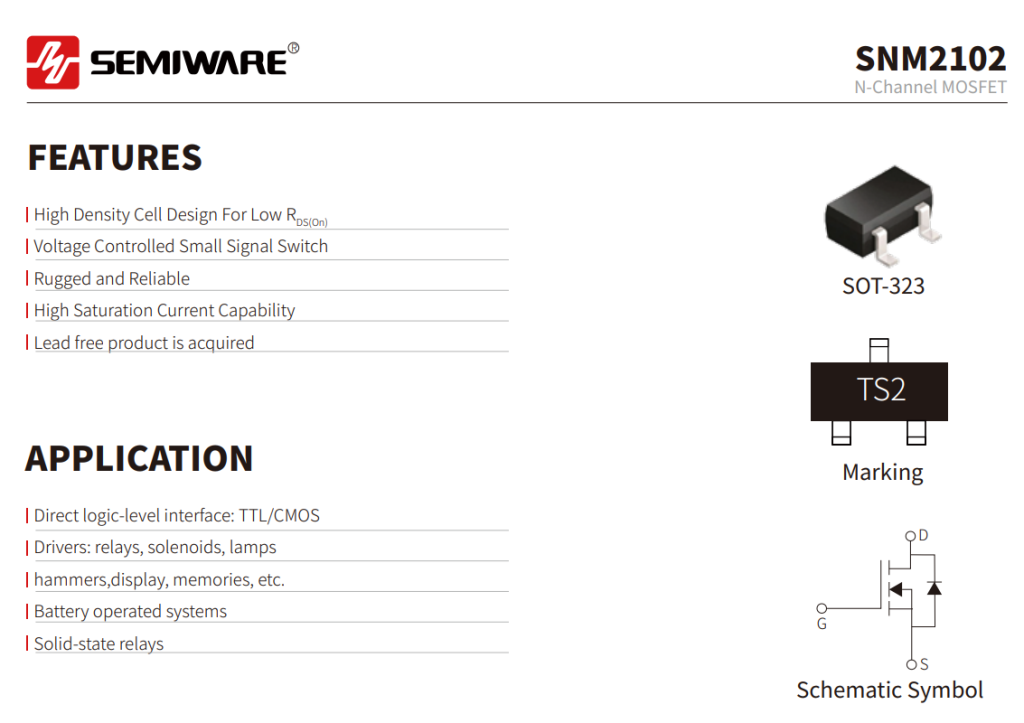

SNM2102 Datasheet
Conclusion
The SNM2102 can be considered an alternative to the MCC SI2102 in small, low-voltage switching applications.
Semiware offers a comprehensive portfolio of P-channel and N-channel small-signal MOSFETs, featuring low on-resistance, a variety of voltage and package options, and superior reliability.
For more product information or alternative evaluations, please contact Semiware for technical and sample support.
