Overview
The AO4407A is a widely used MOSFET in the market, primarily employed in applications such as load switching, power path control, and PWM.
During product development, engineers increasingly prioritize supply stability, lead times, and BOM cost optimization alongside device performance. Consequently, there is a growing demand for alternatives that offer compatible performance without requiring PCB redesigns.
The Semiware SPM4407 is a 30V P-channel MOSFET housed in a standard SOP-8 package, serving as a suitable alternative to the AO4407A. This article provides a detailed comparison of their performance parameters and applications.
I. SPM4407 P-channel MOSFET Key Features
1.1 The SPM4407 utilizes a mature P-channel MOSFET structure, making it suitable for power management applications requiring high-side switch control.
1.2 The SPM4407 features low RDS(ON), effectively reducing conduction losses and enhancing power system efficiency—ideal for power-sensitive applications.
1.3 The SPM4407 comes in a standard SOP-8 package, allowing for easy integration into existing PCB designs.
II. SPM4407 vs. AO4407A Parameter Comparison
| Parameter | SPM4407 | AO4407A |
| Channel | P-Channel | P-Channel |
| Package | SOP-8 | SOP-8 |
| Drain-Source Voltage (VDS) | -30V | -30V |
| Gate-Source Voltage (VGS) | ±20V | ±25V |
| Continuous Drain Current (ID) | -12A | -12A |
| Pulsed Drain Current (IDM) | -42A | -60A |
| RDS(ON) @ VGS=-10V | ≤15mΩ | ≤13mΩ |
| Power Dissipation | 3W | 3.1W |
As shown above, the SPM4407 and AO4407A demonstrate a high degree of compatibility in core specifications:
- Both are 30V P-channel MOSFETs;
- Both utilize the standard SOP-8 package;
- Both maintain low RDS(ON) levels.
The SPM4407 serves as a viable alternative to the AO4407A in most applications involving load switching, power management, and battery-powered devices.
However, for applications involving high-frequency PWM switching or continuous high-current conduction, testing and verification are recommended before substitution.
III. Applications of SPM4407
The SPM4407 is suitable for various power control scenarios, including:
Battery Management:
- Used for power switching, battery protection, and power path management in battery-powered devices.
Load Switches:
- Consumer Electronics
- Portable Devices
- Smart Home Products
Power Management:
- Adapters
- Chargers
- Industrial Control Equipment
PWM Applications:
- Suitable for PWM circuits requiring P-channel MOSFETs for switching control.

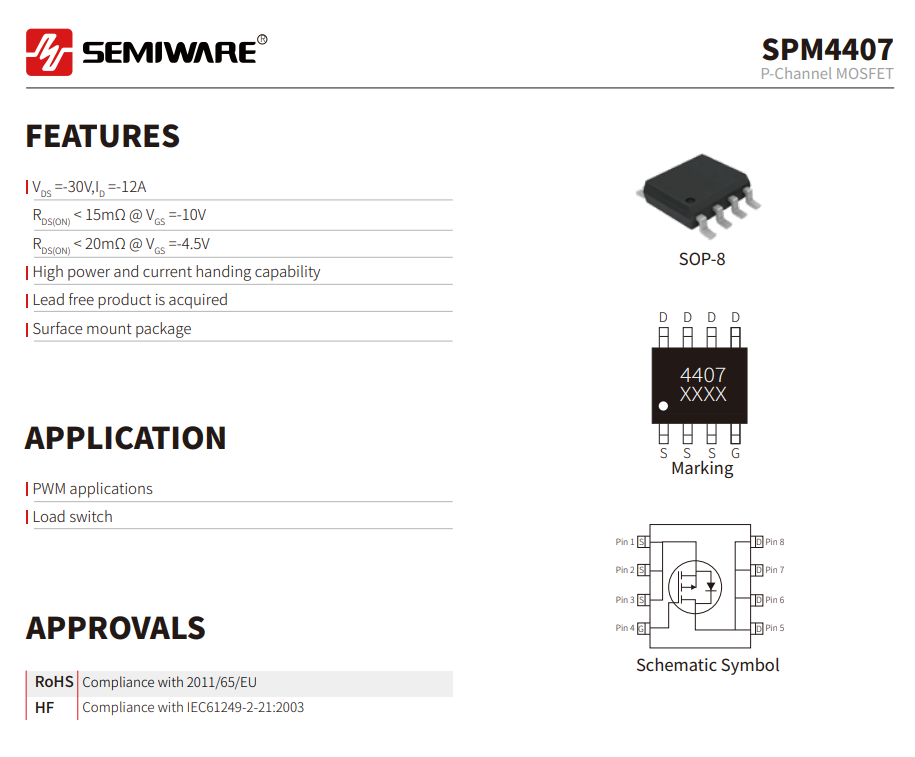

SPM4407 MOSFET Datasheet
If you are looking for an alternative to the AO4407A, please contact Semiware for SPM4407 samples and technical support to help you quickly complete device validation.
