In 48V DC power supply systems (SELV, ≤60V), power lines often face multiple transient interferences simultaneously, including surge impacts, electrostatic discharge (ESD), common-mode interference, and load overcurrent.
I. Hidden Risks in 48V DC SELV Power Systems
48V DC is generally classified as SELV (Extra-Low Voltage), but in practical applications, the system environment is often not "low-risk."
Common application scenarios include:
- Long-distance power supply systems for industrial automation
- Rail transit and infrastructure equipment
- Outdoor communication and monitoring systems
- Energy storage and new energy systems
These scenarios introduce various complex interference sources:
1. Differential mode surges (Line-to-Line):
For example, transient impacts caused by load switching or disconnection of inductive equipment.
2. Common mode surges (Line-to-Earth):
For example, lightning strikes or grid disturbances causing overall potential rise.
3. Overcurrent and short circuits:
For example, continuous high current caused by damage to downstream modules or line abnormalities.
II. Limitations of Using Only a Single Protection Device in 48V Power Supply Design
In industrial environments, these disturbances typically do not occur individually but rather cumulatively. Without a reasonable hierarchical protection design, this can easily lead to DC/DC power supply damage, system restarts, communication anomalies, or even complete board failure.
Based on this, Semiware proposes a multi-level energy-coordinated 48V DC power supply protection scheme to improve the overall anti-interference capability and stability of industrial and high-reliability systems.
III. Semiware Multi-Level Protection Scheme
- Multi-Level Coordinated Protection Architecture:

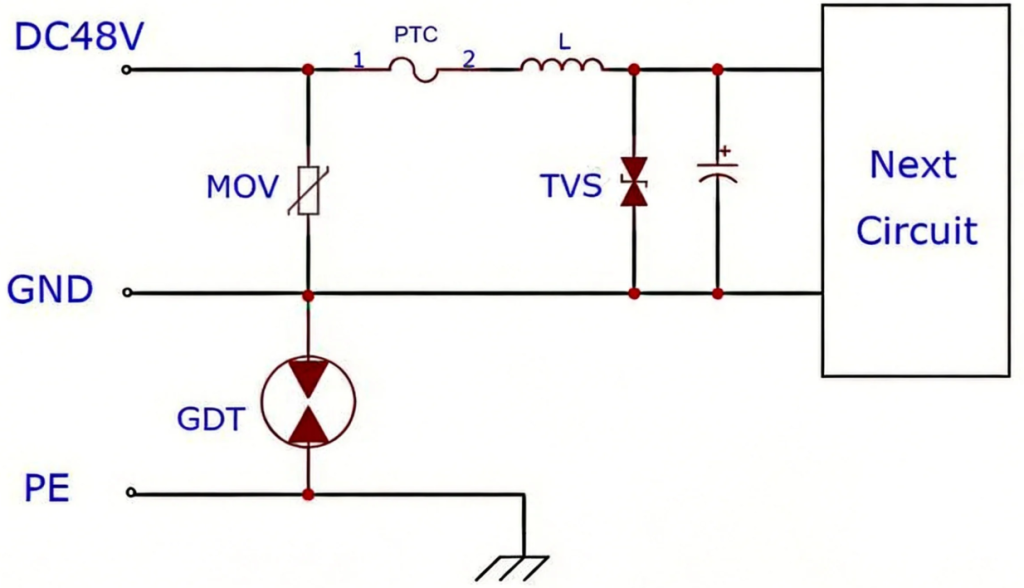

Adopting a three-level design of "primary MOV surge discharge (4.5kA~6kA) + intermediate differential-mode inductor decoupling + secondary TVS precise clamping," the surge response timing is optimized to achieve a balance between high protection capability and low clamping voltage, compatible with diverse circuit designs.
- Dual Overcurrent/Short Circuit Protection Mechanism:
A resettable fuse (PTC) is connected in series after the MOV, with multiple specifications available from 0.75A to 5A. This provides both overcurrent protection and rapid circuit disconnection in case of TVS failure, preventing circuit damage.
- Omnidirectional Differential and Common Mode Interference Protection:
Differential Mode Protection: A high-current MOV is connected in parallel between the positive and negative power supply terminals to quickly dissipate differential mode surge energy.
Common Mode Protection: A ceramic gas discharge tube (GDT) is connected in parallel between GND and PE to provide a common mode surge discharge path. The appropriate model (90V~800V) can be selected to adapt to different insulation withstand voltage test requirements.
- Flexible Device Selection and Adaptation:
Based on Semiware's full range of protection devices (MOV/TVS/PTC/GDT), customized device combinations can be made to meet diverse protection needs based on the testing levels (such as 4KV/2KA surge, ±15kV electrostatic discharge) required for different scenarios such as communications, industrial, and automotive electronics.
IV. Semiware Recommended Part Numbers for DC48V Power Supply Protection
| Device Type | Part Number | Key Electrical Parameters | Package | Protection Function |
| TVS Diode | SMCJ58CA | 58V, 1500W, bidirectional | SMC | Residual surge voltage clamping, protects DC/DC converter |
| TVS Diode | SMDJ58CA | 58V, 3000W, bidirectional | SMC | High-energy transient suppression |
| MOV | 14D820K | 82V ±10%, 4.5kA | 14D | First-stage differential surge absorption |
| MOV | 14D820KJ | 82V ±10%, 6.0kA | 14D | Enhanced surge energy handling |
| PTC Resettable Fuse | SMD2920-075/60 | Ihold 0.75A, Itrip ~1.5A, 60V | SMD2920 | Load overcurrent and fault current limiting |
| PTC Resettable Fuse | SK60-500 | Ihold 5A, Itrip ~10A, 60V | DIP | High current system protection |
| GDT | SG2R05B090 | 90V breakdown, 1pF, 5kA | SMD 5.5*6mm | Common mode surge discharge to earth |
| GDT | SG2R05B150 | 150V breakdown, 1pF, 5kA | SMD 5.5*6mm | Adjustable insulation level protection |
| GDT | SG2R06B800A | 800V breakdown, 1pF, 5kA | SMD6.2*4.2mm | High insulation systems / harsh environments |
V. Application Areas
This 48V DC protection solution is widely used in:
- Industrial Automation and Robotics
- Railway Signaling and Infrastructure Systems
- Security Monitoring Equipment
- Energy Storage Systems (ESS)
- LED Lighting Systems
- Medical Electronic Equipment
- Telecommunications and PoE Power Supply Systems
Conclusion
48V DC power systems require more than basic protection components—they require coordinated energy management across multiple transient events.
By combining MOV, TVS, PTC, and GDT in a structured architecture, Semiware’s solution ensures robust protection against both differential and common mode disturbances while maintaining system stability under real-world industrial conditions.
For application support or component selection guidance for 48V DC protection design, please contact Semiware technical team for detailed design recommendations and reference circuits.
