Low-Capacitance, Dual-Channel ESD Protection Solution for High-Speed ​​Signals

Introduction

As high-speed interfaces such as USB, HDMI, LAN, and I²C become increasingly ubiquitous, electrostatic discharge (ESD) has emerged as a critical factor that cannot be overlooked in the reliability design of electronic products.

Engineers often encounter requirements such as the following during the design process:

"Is there a ESD diode">dual-channel ESD diode suitable for high-speed signals? Ideally, it should come in an SOT-23 package, protect two I/O ports, and—crucially—not compromise signal integrity."

To address this need, Semiware has launched a series of dual-channel, bidirectional, low-capacitance ESD protection devices. Housed in an SOT-23 package, these devices balance high-speed signal integrity, PCB space efficiency, and robust ESD surge protection, making them suitable for a wide range of interface applications.

I. Why Do High-Speed ​​Interfaces Require Low-Capacitance ESD Protection?

High-speed digital interfaces—such as:

• USB 2.0
• USB 3.0
• HDMI 1.3 / 1.4
• eSATA
• Gigabit Ethernet
• High-speed I²C communication
• High-speed GPIO interfaces

The data transmission rates of these interfaces are increasing, and the requirements for signal quality are also becoming more stringent. If the junction capacitance of the ESD device is too large, it can easily cause:

• Signal attenuation
• Waveform distortion
• Degraded eye diagrams
• Increased data bit error rates (BER)

Consequently, ultra-low capacitance ESD diodes are typically selected for high-speed interfaces to provide ESD protection while minimizing impact on the signal.

Semiware’s product series features a typical junction capacitance of only about 0.8pF, meeting the requirements of most high-speed interface applications.

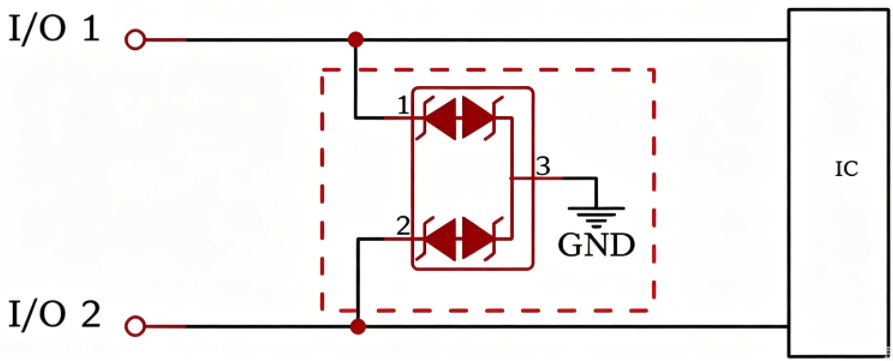

II. Advantages of the Dual-Channel Solution – Protecting Two I/Os With a Single Chip

✔ Protects two high-speed signal lines simultaneously

✔ Saves PCB real estate

✔ Reduces BOM (Bill of Materials) count

✔ Simplifies PCB layout

✔ Ideal for space-constrained, compact electronic products

The SOT-23 package is also one of the most widely used ESD package types on the market, offering mature soldering processes and high compatibility.

III. Semiware Product Recommendations

Semiware currently offers four models with common operating voltages, covering the vast majority of digital interface applications.

IV. Features and Advantages

1. Dual-channel bidirectional protection: Each device protects two signal lines.

2. Meets IEC 61000-4-2 Level 4 standards

• Contact Discharge: ±8kV
• Air Discharge: ±15kV

Effectively withstands ESD strikes caused by human body static electricity and device plugging/unplugging.

3. Surge handling capability up to 350W

Many engineers assume that ESD devices are solely for electrostatic discharge protection.

In reality, this series boasts a peak power rating of 350W. Beyond ESD protection, it offers superior resilience against interface hot-swapping, minor surges, and power supply transients, thereby enhancing overall system reliability.

4. Low Clamping Voltage (VC)

Upon an ESD strike, the device activates rapidly to shunt surge current to ground.

Simultaneously, it maintains a low clamping voltage (VC), effectively reducing voltage stress on downstream ICs and protecting components such as MCUs, FPGAs, PHYs, and various high-speed chips.

5. Ultra-low Junction Capacitance

High-speed interfaces are sensitive to added load. With a maximum junction capacitance of approximately 0.8pF, this series has minimal impact on high-speed signals, ensuring signal integrity—making it particularly suitable for high-speed differential signal designs.

6. Ultra-low Leakage Current

With a leakage current of only 1μA, the device adds negligible power consumption during normal operation and does not interfere with the interface's functionality.

V. Typical Applications

This series is widely used in various high-speed digital interfaces, including:

• USB 2.0
• USB 3.0
• HDMI 1.3
• HDMI 1.4
• eSATA
• I²C Bus
• LAN (10/100/1000M)
• WAN interfaces
• Industrial communication interfaces
• Consumer electronics high-speed I/O
• Network equipment
• Security and surveillance
• Industrial control equipment

Summary

For high-speed digital interfaces, ESD protection requires not only rapid response times but also low capacitance, low clamping voltage, high reliability, and compact packaging.

If you are seeking a dual-channel ESD protection solution for high-speed signals, or require ESD and surge protection designs for interfaces such as USB, HDMI, Ethernet, or industrial communications, please contact Semiware. We offer component selection guidance and comprehensive interface protection solutions.
