I. Background

The AO3401 is a very common P-channel MOSFET, frequently used in:

  • Reverse polarity protection
  • Load switching
  • Power management for portable devices

However, in real-world projects, engineers often encounter three practical problems:

  • Longer lead times (supply chain fluctuations)
  • Increased cost pressures
  • The need for alternative components to ensure mass production

Therefore, finding a pin-to-pin compatible alternative has become a standard selection process. The Semiware SPM3401S can replace the AOS3401 from AOS.

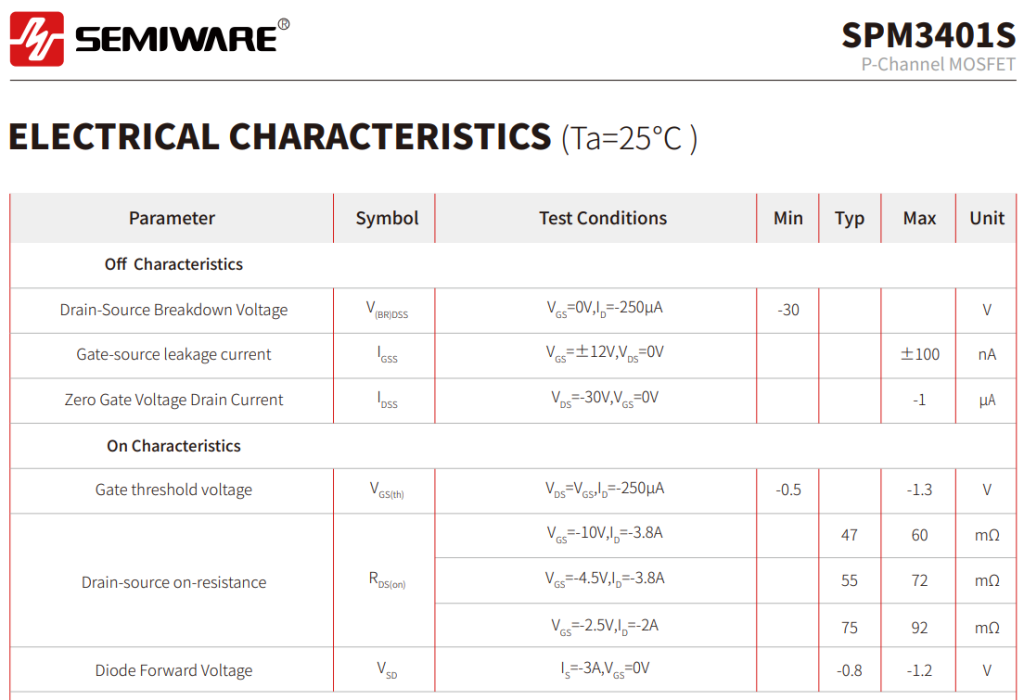

SPM3401S as an Alternative to AO3401: A Pin-to-Pin Compatible P-Channel MOSFET Solution-Protection Devices-TVS Diodes-ESD Protection devices-Gas Discharge Tube-Thyristor-Pled Protectors-Mov

II. SPM3401S vs AO3401 Parameter Comparison

ParameterSPM3401SAO3401Match Status
PackageSOT-23SOT-23Same
Channel TypePPSame
VDS-30-30Same
ID (25°C)-3.8A-4AClose
VGS±12V±12VSame
VTH (Typ.)-0.9V-0.9VSame
RDS(on) @10V47mΩ41mΩSlightly Higher
RDS(on) @4.5V55mΩ47mΩSlightly Higher

Although the on-resistance of the SPM3401S is slightly higher than that of the AO3401, in most low-voltage power management circuits, the SPM3401S can directly replace the AO3401 pin-to-pin.

III. Power Management and Protection Circuit Applications

  1. Reverse Protection Circuit:
  • Replaces diodes, resulting in smaller voltage drop and reduced wasted power consumption;
  • Quickly cuts off power in reverse connection to prevent equipment damage.
  1. Load Switching and Power Distribution:
  • Used for power on/off control in mobile devices, computer motherboards, etc., supporting PWM voltage regulation;
  • Controls RF amplifier power in 5G small base stations with a short response time (approximately 60ns).

IV. Portable Electronic Device Applications

  1. Battery Management System:
  • Mobile Phone/Lithium Battery Protection Board: Prevents overcharging and over-discharging, supports reverse connection protection;
  • Power Banks, E-cigarettes: High-efficiency switching control, extending battery life.
  1. Power Control for Small Devices:
  • MP3/Bluetooth Headsets/GPS Devices: Low-power design suitable for USB power supply scenarios.

V. Power Supply and Motor Drive Applications

  1. DC-DC Conversion and Inversion:
  • Power Inverters, Car DVDs: Supports -30V high-voltage switching, compatible with automotive electronics requirements;
  • Synchronous Rectification Circuit: High-speed switching characteristics improve conversion efficiency.
  1. Motors and LED Drivers:
  • Micromotors (e.g., drones, power tools): Provide stable drive current;
  • LED lighting/displays: Constant current regulation ensures stable brightness.

VI. Industrial and New Energy Applications

  1. Industrial Equipment:
  • Stepper motor drivers, electric drills: High voltage resistance, impact resistance;
  • Industrial switching power supplies: Low heat loss design reduces heat dissipation requirements.
  1. Green Energy Systems:
  • Photovoltaic inverters, charging piles: High-efficiency power conversion;
  • Electric vehicle related: Automotive HID ballasts, electric bicycle controllers.

Overall, the SPM3401S, while maintaining pin-to-pin compatibility with the AO3401, possesses good conduction performance and stable switching characteristics, making it suitable for most low-voltage power management and load switching applications.

Without changing the PCB layout, the SPM3401S can serve as a direct replacement for the AO3401, helping to optimize supply chain stability and overall BOM costs.

For specific application design recommendations, please refer to the product datasheet to ensure design margins under different operating current and heat dissipation conditions.

👉 SPM3401S datasheet: https://en.semiware.com/small-signal-mosfets/spm3401s/
