Overview
The 7N65 is a widely used 650V high-voltage MOSFET in the market for low-to-medium power AC-DC power supplies, PFC circuits, and industrial switching power systems, finding extensive application in off-line power supplies and high-voltage switching scenarios.
Semiware introduces the SNMF7N65, a 650V N-channel enhancement-mode power MOSFET designed for general-purpose 7N65 applications. It strikes a balance between conduction loss, switching performance, and avalanche ruggedness, making it suitable for both consumer electronics and industrial power supply applications.
Utilizing a mature planar VDMOS process, this device balances cost, thermal performance, and switching characteristics, offering engineers a 650V power MOSFET option suitable for new designs, second-source adoption, and BOM optimization.

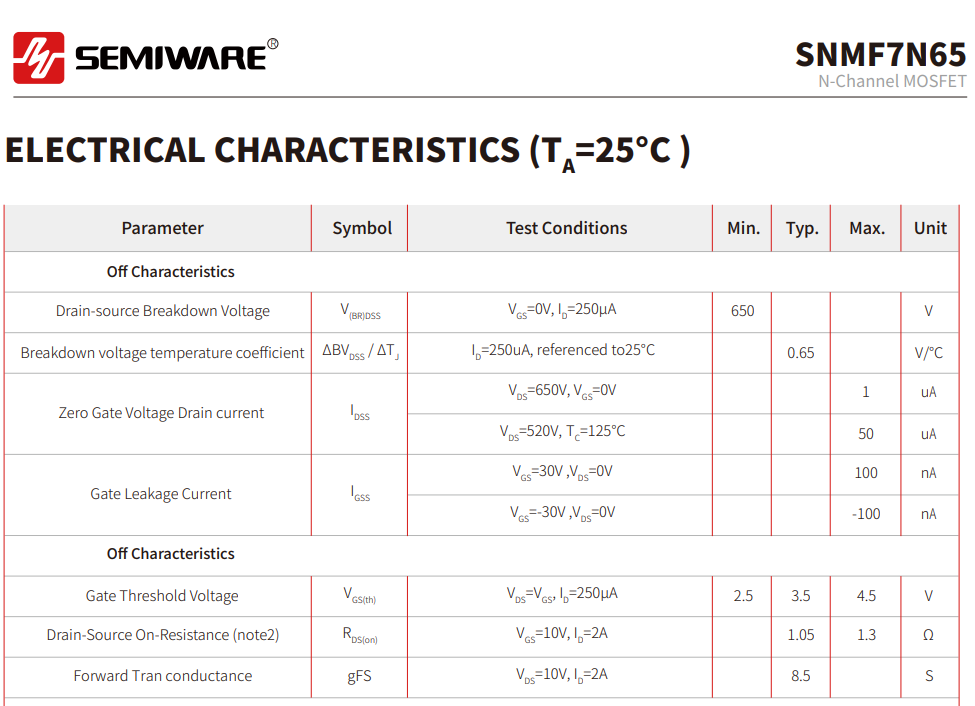

I. SNMF7N65 Key Electrical Parameters
| Parameter | Specification |
| Drain-Source Voltage (V<sub>DSS</sub>) | 650 V |
| Continuous Drain Current (I<sub>D</sub>) | 7 A @ T<sub>C</sub> = 25°C |
| Pulsed Drain Current (I<sub>DM</sub>) | 28 A |
| Drain-Source On-State Resistance (R<sub>DS(on)</sub>) | 1.05 Ω typ., 1.3 Ω max. @ V<sub>GS</sub> = 10 V |
| Gate-Source Voltage (V<sub>GS</sub>) | ±30 V |
| Total Gate Charge (Q<sub>g</sub>) | 26 nC typ. |
| Single-Pulse Avalanche Energy (E<sub>AS</sub>) | 343 mJ |
| Operating Junction Temperature (T<sub>J</sub>) | −55°C to +150°C |
II. 7N65 MOSFET Key Features
- 650V Drain-Source Breakdown Voltage and 7A Continuous Drain Current
- For off-line power systems such as AC-DC power supplies, PFC circuits, and LED drivers, the 650V voltage rating meets the fundamental requirements for power switching devices on the high-voltage DC bus side.
- Low On-Resistance (RDS(on)) to Reduce Conduction Loss
- MOSFET conduction loss is closely related to RDS(on) and the actual operating current. Lower on-resistance helps reduce conduction loss and device heat generation, thereby improving the overall thermal performance of the power supply system.
- Low Gate Charge for Balanced Switching Performance
- In switching power supplies, MOSFETs must frequently switch between on and off states. Low gate charge helps reduce gate drive requirements and control switching-related losses, making the device suitable for power supply designs operating at medium switching frequencies.
- Single-Pulse Avalanche Ruggedness
- The SNMF7N65 features a single-pulse avalanche energy (EAS) of 435mJ, providing the MOSFET with a degree of transient ruggedness under specified test conditions.

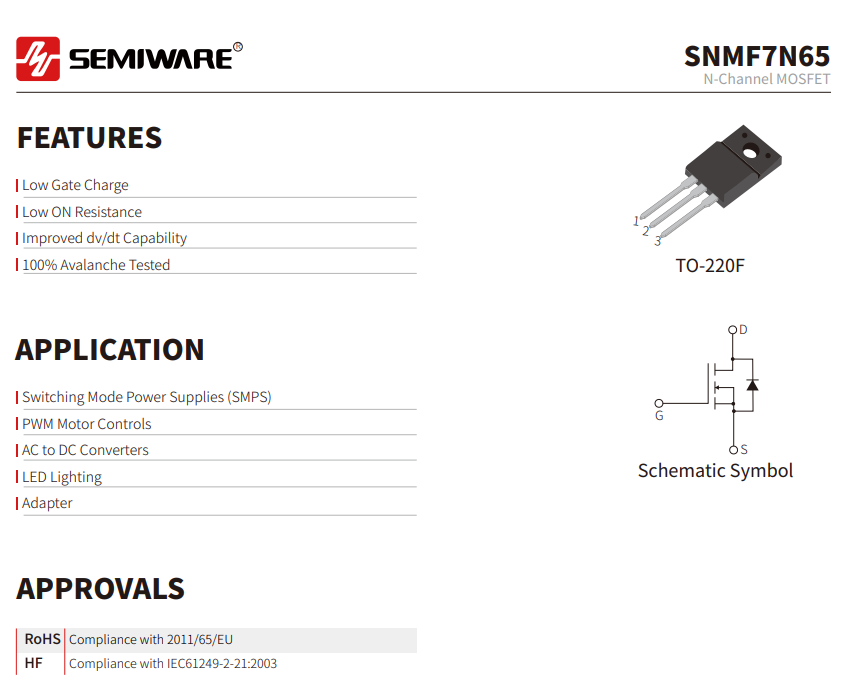

5. Standard TO-220F Package
- The SNMF7N65 comes in a standard TO-220F package, making it easy for engineers to evaluate compatibility with existing PCBs, thermal management structures, and safety compliance requirements.
- RoHS Compliance
- The SNMF7N65 complies with RoHS and other environmental standards, meeting the requirements for eco-friendly materials and manufacturing processes in consumer and industrial electronics.
III. Typical Application Scenarios for the 7N65 MOSFET
Designed for high-voltage switching and power conversion applications, the SNMF7N65 is widely used in the following scenarios:
- AC-DC Switched-Mode Power Supplies (SMPS)
- Power adapters
- Chargers
- Industrial power supplies
- Consumer electronics power supplies
- TV power boards
- Auxiliary power supplies
In topologies such as flyback and forward converters, the MOSFET typically serves as the primary switching device on the high-voltage side, requiring it to withstand high drain-source voltages and periodic switching stress.
- PFC (Power Factor Correction) Circuits
- In active PFC circuits, the MOSFET often operates with high-speed switching at elevated DC bus voltages.
- Such applications require devices that not only possess sufficient voltage withstand capability but also balance conduction losses, gate charge, and switching losses.
- The SNMF7N65 can be used in the high-voltage power switching stage of specific PFC circuits; actual suitability should be evaluated based on input voltage, output power, switching frequency, and thermal conditions.
- LED Driver Power Supplies and Electronic Ballasts
LED driver power supplies typically employ a switched-mode architecture, where the high-voltage MOSFET handles energy conversion and switching control on the high-voltage side.
- LED driver power supplies
- LED lighting power supplies
- High-power LED power supplies
- Certain electronic ballasts
- UPS and Power Conversion Systems
- In low-power UPS units, auxiliary power supplies, and other power conversion systems, the 650V N-channel MOSFET can be utilized in the high-voltage switching stage.
- High-Voltage DC-DC Converters
- The SNMF7N65 can serve as a power switching device in certain high-voltage DC-DC converters.
In summary, the SNMF7N65 is suitable for a wide range of low-to-medium power offline power supplies and high-voltage switching applications, offering a balance between device cost, conduction loss, switching performance, and supply stability.
IV. Reference for Alternative Selection
The SNMF7N65 is designed for common 650V high-voltage N-channel MOSFET applications and can serve as a replacement or secondary source option for the following devices of the same class:
- onsemi FQPF7N65C
- ST STP7NK65Z
- Toshiba TK7A65D
- Other 650V N-channel MOSFETs in TO-220 packages
For projects involving 7N65 MOSFET replacement, BOM optimization, or supply chain diversification, the SNMF7N65—featuring a 650V voltage rating, 7A current capability, and a standard power MOSFET package—enables engineers to evaluate alternatives based on performance, cost, and supply stability.
V. Design Considerations and Recommendations
- Allow for Adequate Voltage Margin
- When replacing a 650V MOSFET, it is essential not only to verify that the device's VDSS meets the system operating voltage requirements but also to physically measure the MOSFET's VDS waveform during switching.
- Consider Current and Temperature Derating
- A MOSFET's actual current-carrying capacity is closely linked to junction temperature, case temperature, and thermal dissipation conditions.
- The SNMF7N65 has a rated continuous drain current of 7A at TC = 25°C. As the operating temperature rises, the device's permissible current capacity decreases accordingly.
- Practical applications require a comprehensive evaluation that accounts for conduction losses, switching losses, thermal dissipation conditions, and the maximum operating temperature.
- Optimize Gate Drive Design
- When replacing a MOSFET, verify that the original gate drive voltage meets the SNMF7N65's driving requirements.
- Additionally, the gate resistor can be adjusted based on actual switching waveforms to strike a balance between switching losses, EMI, and voltage spikes.
- Furthermore, avoid leaving the gate floating; implement appropriate gate pull-down or turn-off measures tailored to the specific drive circuit to minimize the risk of accidental turn-on.
- Verify Package and Pinout
- TO-220 and TO-220F are common power MOSFET package types. During replacement, be aware that differences may still exist regarding package dimensions, pin assignments, pin spacing, and thermal resistance.
Summary and Technical Support
The SNMF7N65 is a 650V N-channel power MOSFET with a continuous drain current rating of 7A. It is suitable for applications such as AC-DC switching power supplies, PFC circuits, LED drivers, UPS systems, and other high-voltage switching power conversion applications.
Engineers working on 7N65 MOSFET replacement, second-source qualification, or BOM optimization are encouraged to contact Semiware with their application specifications and device requirements; we can assist with model evaluation and sample verification.
