Introduction
Yesterday, we introduced the BC847, a common NPN small-signal transistor in an SOT-23 package. Today, let’s take a look at its complementary PNP counterpart—the BC857.

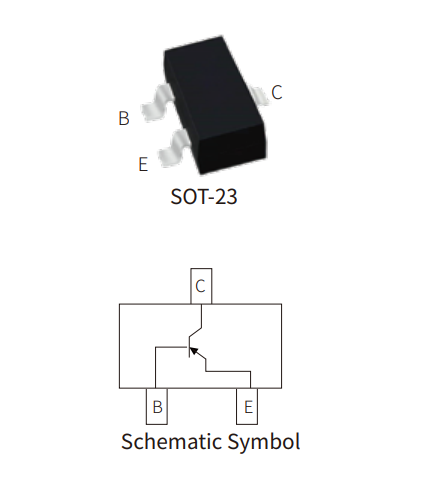

The BC857 is a general-purpose PNP small-signal transistor in an SOT-23 surface-mount package. It is widely used in applications such as high-side switching, analog signal amplification, push-pull circuits, and sensor interface circuits.
Hardware engineers often encounter a few practical questions during projects:
- What are the differences between the BC857A, BC857B, and BC857C?
- Since the BC857 and BC847 are complementary transistors, can they be directly interchanged?
- When switching suppliers for the Bill of Materials (BOM), which parameters—beyond DC current gain (hFE)—require careful verification?
I. BC857 Core Parameters and Key Features
Core Parameters:
| Parameter | BC857 Specs |
| Package | SOT-23 |
| VCEO | −45 V |
| IC | −100 mA |
| hFE | 110–800 |
| Type | PNP |
Key Features:
- -45 V Collector-Emitter Voltage: Suitable for low-voltage signals, control circuits, and battery-powered products;
- -100 mA Collector Current: Suitable for applications such as low-current high-side switching and small-signal driving;
- SOT-23 Surface-Mount Package: Ideal for PCB miniaturization and automated SMT mass production;
- Three hFE Gain Grades (A/B/C): Allows for the selection of the appropriate gain level based on specific requirements, such as analog biasing or switching circuits;
- Complementary PNP Pair to the BC847: Suitable for complementary push-pull stages, differential amplifiers, and other circuits requiring PNP/NPN pairing.
II. BC857A / BC857B / BC857C: Differences in hFE Gain Grades
The suffixes A, B, and C indicate sorting based on DC current gain (hFE). The test conditions for the hFE data below are VCE = 5 V and IC = 2 mA:
- BC857A: 110–220
- BC857B: 200–450
- BC857C: 420–800
It is important to note that hFE is not a fixed, unchanging parameter. Actual values will vary depending on collector current, VCE, junction temperature, and individual device differences.
III. Typical Application Scenarios for the BC857 Series
Thanks to its compact SOT-23 package and suitability for small-signal control, the BC857 is widely used in fields such as consumer electronics, smart home systems, security, and industrial control:
- High-side switching and load power gating circuits for low-voltage lighting systems
- Push-pull circuits and small-signal analog amplification
- Control boards for smart home devices and consumer electronics
- Sensor signal acquisition, conditioning, and interface circuits
- Auxiliary control for access control and surveillance equipment
- Low-current high-side driving and auxiliary switching in industrial control applications
IV. Why Choose Semiware BC857?
For general-purpose small-signal transistors like the BC857, mass-production projects require consideration of batch consistency, long-term supply, and BOM replacement support, in addition to device parameters. Semiware’s advantages include:
- Complete A/B/C gain ranges: Covers various hFE requirements, facilitating component selection and substitution based on specific circuit designs.
- Stable batch consistency: Rigorous quality control tailored for mass production helps minimize risks associated with parameter fluctuations during BOM replacement and long-term manufacturing.
- Stable supply and cost control: Backed by in-house manufacturing capabilities, Semiware supports everything from samples and small batches to mass production, offering a reliable choice for second-sourcing and supplier transitions.
- Parameter matching and technical validation support: Offers cross-referencing based on customer-specified part numbers, packages, and key electrical parameters, alongside datasheets, compliance documentation, samples, and FAE technical support.
If you are looking for a second source, a replacement model, or a mass-production supplier for the BC857A, please contact Semiware for samples, parameter matching, and pricing information.
