I. Brushless Motors: Changing Our Lives Everywhere
When a bladeless fan delivers a gentle breeze, its internal 130,000 RPM brushless motor is precisely driven by MOSFETs; a robotic vacuum cleaner squeezes into 7cm gaps, with seven motors working together to clean along the edges; an electric toothbrush vibrates at 31,000 times per minute to clean between teeth; a fascia gun responds to pressure within 50μs; and a drone is performing precision spraying tasks.
Behind all these devices lies the same core system:
Brushless Motor (BLDC) + MOSFET Electronic Drive System
II. Brushed Motors vs. Brushless Motors
| Parameter | Brushed DC Motor | Brushless DC Motor (BLDC) |
| Commutation Method | Mechanical (brush & commutator) | Electronic (MOSFET-based switching) |
| Rotor Structure | Armature (coil on rotor) | Permanent magnet rotor |
| Control Complexity | Simple direct drive | Requires MCU + driver + MOSFET inverter |
| Efficiency | Moderate (brush losses present) | High (no mechanical contact losses) |
| Service Life | Shorter (brush wear) | Longer (no brush wear) |
| Noise Level | Higher due to friction | Lower and smoother operation |
| EMI Performance | Higher electromagnetic noise | Lower EMI interference |
| Typical Applications | Toys, power tools, window lifts | Drones, robotics, fans, vacuum cleaners |

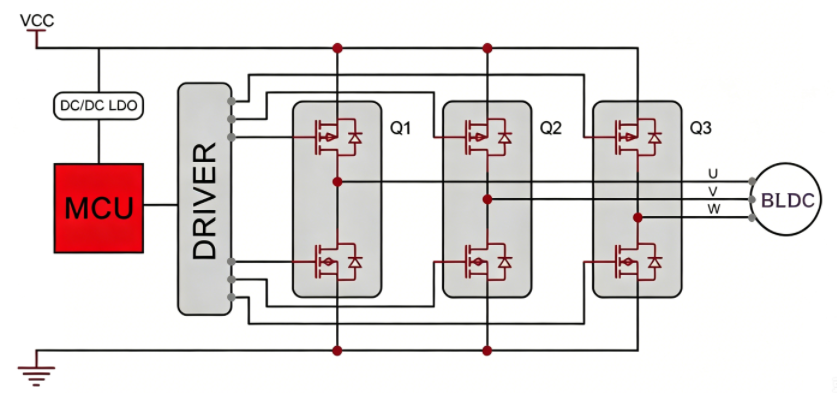

III. BLDC Motor Drive System Structure
A typical BLDC drive system consists of three parts:
- MCU (Control Logic and PWM Output)
- Gate Driver
- Power MOSFETs
The power switch consists of three N+P type packaged MOSFETs, controlling the direction and speed of the DC motor. Compared to a system with six NMOS transistors, it is simpler to drive, has a smaller circuit size, more stable performance, and lower cost.
IV. The Key Role of MOSFETs in Motor Drives
MOSFETs are the core power devices in BLDC systems, directly affecting:
- Switching Loss
- Conduction Loss (Rds(on))
- System Efficiency
- Thermal Performance
- EMI Performance
In high-speed motor applications (>10kHz PWM), MOSFET performance determines system stability.
V. Advantages and Applications of N+P MOSFETs

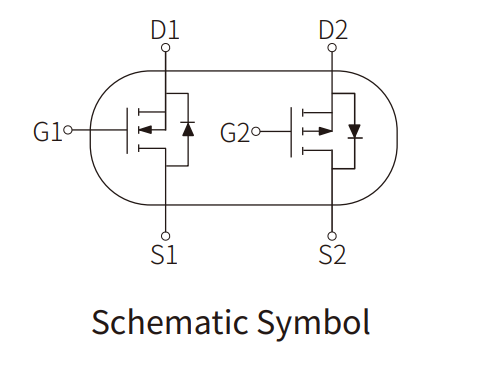

N+P Complementary MOSFETs are power device solutions that integrate N-channel and P-channel MOSFETs in the same package.
Its advantages include:
- Optimized high-side and low-side matching
- More compact circuit structure
- Higher design consistency
- Superior system reliability
Application areas include:
- Brushless motor drives (BLDC)
- Power tools
- Home appliance motor control (fans/vacuum cleaners)
- Drone power systems
- Industrial automation equipment
- Battery management systems (BMS)
VI. Semiware N+P MOSFET Solutions
Semiware offers N+P MOSFET products in various packages:
- SOT23-6L
- SOP-8
- PDFN3×3-8L
- PDFN5×6-8L
- TO-252
Suitable for high-efficiency, compact motor drive and power control applications.
Conclusion
Brushless motors are driving motor control systems towards higher efficiency and greater integration. As core power devices, the structural optimization of MOSFETs directly impacts system performance.
N+P co-packaged MOSFET solutions are becoming a more compact and efficient choice in BLDC motor drive designs.
