Compared to traditional access control equipment, video access control systems integrate functions such as high-definition video capture, voice communication, network connectivity, and data transmission.
As integration levels rise, the challenges regarding electrical reliability become increasingly significant. Furthermore, since video access control devices are typically installed at building entrances, on exterior walls, or in public areas—exposing them to complex environments for extended periods—surge and electrostatic discharge (ESD) protection design is a critical consideration.
I. Key Electrical Risks and Impacts Facing Video Access Control Systems
1.1 Surge Transient Risks
- Transient high voltages induced by lightning strikes
- Surge interference caused by power grid switching
Surge pulses can enter the device through power inputs or communication interfaces, potentially causing:
- Damage to power management chips
- Abnormal MCU resets
- Failure of communication modules
- Inability of the system to unlock properly
1.2 Electrostatic Discharge (ESD) Risks
Static electricity carried by the human body can generate ESD pulses of up to several thousand volts upon contact with touchscreens, keypad areas, or fingerprint recognition modules. Although the duration of the discharge is extremely short, the very fast rise time makes it prone to damaging components such as:
- Camera modules
- Touch control ICs
- Communication chips
- Main processors

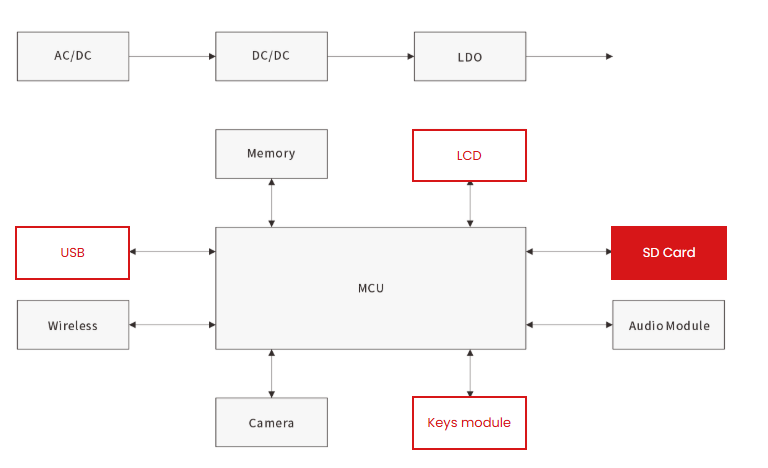

II. Key Considerations for Circuit Protection in Video Access Control Systems
| Protection Location | Main Electrical Risks | Recommended Protection Devices |
| DC Power Input | Surge transients, voltage spikes, power line disturbances | TVS Diode |
| Ethernet Interface | ESD, surge events, cable-induced transient overvoltage | Low-capacitance ESD Protection Diode |
| RS-485 / CAN Communication Interface | Electrical transients, EFT, surge interference | TVS Diode |
| USB Interface | Plug-in ESD, contact discharge from users | ESD Protection Diode / TVS Array |
| Door Lock Control Circuit | Inductive voltage spikes generated by relay or lock actuator switching | TVS Diode |
| Camera & Sensor Interfaces | ESD during installation or maintenance, transient disturbances | Low-capacitance ESD Protection Device |
III. The Protective Role of TVS Diodes in Video Access Control Systems
During normal operation, the TVS diode remains in a high-impedance state and does not interfere with circuit function;
When a surge or ESD pulse occurs, the TVS rapidly conducts, clamping the transient voltage to a safe level and thereby protecting sensitive downstream components.
In video access control systems, TVS diodes are primarily used for:
3.1 Power Supply Protection
- For 12V/24V DC power systems, TVS devices with appropriate reverse working voltages can be selected to suppress surges at the input.
3.2 Communication Interface Protection
- For high-speed communication interfaces such as Ethernet and RS-485, protection devices with low parasitic capacitance must be selected to provide ESD protection without compromising signal quality.
To learn more about detailed protection solutions for access control systems, please visit: https://en.semiware.com/applications/entrance-guard/
IV. Considerations for Video Access Control System Protection Design
4.1 Selecting the Appropriate Protection Level
- Protection components must be selected based on the system's operating voltage, surge rating, and relevant standards.
4.2 Prioritizing Signal Integrity
- For high-speed data interfaces, the parasitic capacitance of ESD protection components should be minimized.
4.3 Multi-stage Protection Design
Complex security systems typically require a combination of:
- Gas Discharge Tubes (GDTs)
- PTC fuses
- TVS diodes
- ESD protection components
Conclusion
A robust protection strategy effectively mitigates the risk of damage caused by surge transients, ESD (Electrostatic Discharge) events, and electrical interference, thereby enhancing system stability and extending product lifespan.
Semiware offers a comprehensive range of circuit protection solutions—including TVS diodes, ESD protection devices, and Gas Discharge Tubes (GDTs)—specifically designed to protect power lines, communication interfaces, and sensitive electronic components in security and smart building applications.
Are you looking for a reliable protection solution for video intercom or access control systems? Contact the Semiware technical team to discuss your application requirements and select the right protection components for your design.
