DC 12V–6kV Surge Protection Design: Risks, Applications, and Optimized Protection Solution

In demanding applications such as outdoor base stations, industrial automation, smart streetlights, and automotive electronics, DC12V-6KV has become a critical requirement for power port protection design. This means that the system must not only operate stably at 12V DC voltage, but also withstand transient lightning surges of up to 6kV.

This article will delve into the application scope of DC 12V-6KV systems, the electrostatic surge risks they face, and Semiware's "GDT+TVS" multi-level collaborative protection solution to help engineers achieve highly reliable and high-voltage circuit designs.

I. DC12V-6KV Typical Application Scenarios

1. Outdoor & Industrial Equipment

• Surveillance cameras (CCTV)
• Outdoor access points (AP)
• Industrial control systems

2. Automotive Electronics

• Body control modules (BCM)
• In-vehicle infotainment
• ADAS domain controllers

3. Communication Systems

• xDSL equipment
• Base stations
• IoT gateways

4. Consumer Electronics with External Interfaces

• Power adapters
• Smart home devices
• USB-powered systems

II. ESD and Surge Risks in DC 12V Systems

When circuit design requires a 6KV withstand voltage level, it typically means the equipment is deployed in areas prone to lightning strikes or strong electromagnetic interference environments, facing the following three main risks:

1. Lightning Surge: Direct lightning strikes or induced lightning strikes coupled through power lines or signal lines generate transient high-voltage pulses up to 6KV and several kA, which can easily cause power modules to burn out.

2. Electrical Fast Transient Burst (EFT): In industrial settings, operations such as motor starting and stopping, relay switching, and contactor operation generate high-frequency, high-density pulse bursts on power lines (IEC 61000-4-4 standard), potentially causing system malfunctions or communication interruptions.

3. Electrostatic Discharge (ESD): When a human body comes into contact with the equipment interface or casing, the electrostatic voltage can reach over 15KV in a dry environment. Although the energy is relatively small, its high-frequency characteristics can easily couple to sensitive ICs, causing equipment damage.

III. Semiware Protection Solution

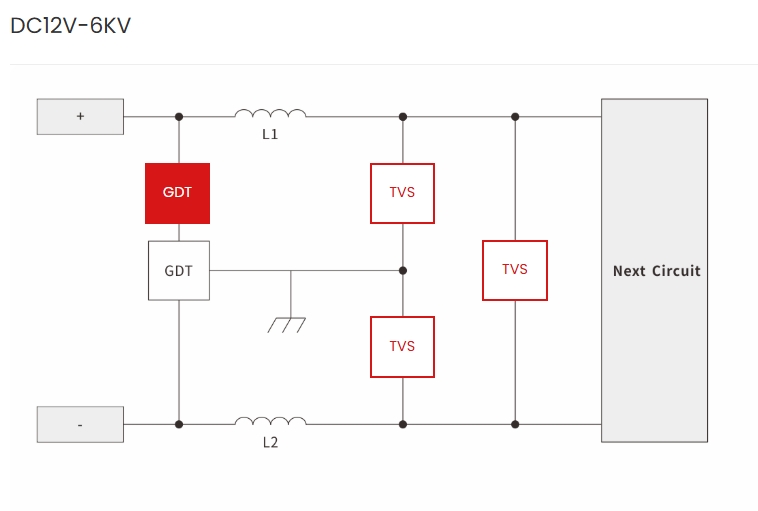

To meet the stringent requirements of DC 12V-6KV, Semiware offers a multi-level protection architecture (as shown in the circuit diagram) using the "SG3D05B230 gas discharge tube + SVB60B36 bidirectional TVS diode," achieving a comprehensive protection strategy of "front-end leakage, back-end clamping, and bidirectional protection."

1. Primary Protection Device

Solution advantages: As the first-level protection, the SG3D05B230 has a 5KA ultra-high current carrying capacity, efficiently discharging a 6KV lightning surge to prevent overload of subsequent TVS. Its 1pF ultra-low capacitance ensures no signal attenuation on high-frequency signal lines or high-speed data lines, suitable for industrial Ethernet, RS485, and other communication interfaces. Through-hole packaging enhances mechanical strength, suitable for harsh outdoor environments.

2. Secondary Protection Device

Solution Advantages: The SVB60B36, as a secondary protection level, boasts nanosecond-level response speed, precisely clamping residual voltage to within 44.2V, perfectly adapting to 12V systems. Its bidirectional design supports positive and negative surge protection, suitable for floating ground or differential signal systems. The SMB package facilitates automated placement, improving production efficiency, while its 600W power is sufficient to handle low-to-medium energy interference such as EFT and ESD.

Conclusion

For DC 12V systems exposed to 6kV surge threats, Semiware’s GDT + TVS coordinated protection solution provides a reliable and cost-effective approach.

With proven performance against lightning surge, EFT, and ESD, it ensures robust system protection and long-term operational stability.
