Overview
Today, GPS technology is integrated into all aspects of life and industry. Devices such as vehicle navigation, fleet tracking, and IoT positioning terminals all rely on accurate GPS positioning. However, few people realize that the radio frequency front-end of a GPS receiver is extremely sensitive, the "vulnerable core" of the entire device, and highly susceptible to electrostatic discharge (ESD) and surges. This can lead to signal interruption and inaccurate positioning, or even direct module damage, paralyzing the entire GPS system.
In practical applications, GPS systems face three main ESD and surge threats:
- Surges from lightning strikes can enter the device through antenna cables, posing a major risk to vehicle-mounted and outdoor GPS devices;
- Electrostatic discharge generated during connector insertion/removal and installation is a high-frequency risk in daily operation;
- Voltage spikes caused by power grid fluctuations and peripheral connections can directly affect various GPS interfaces and power supply lines.
To address these pain points, Semiware has developed a comprehensive protection solution specifically for GPS systems, balancing protection effectiveness with RF signal integrity. From the antenna and RF signal terminals to the interface power supply, it provides all-around protection against electrostatic discharge (ESD) and surge threats.
Below is a detailed explanation of this practical protection design concept and core components.
🔹 Antenna Side: High-Energy Surge Protection, Directly Addressing Lightning Threats
The GPS antenna port is a major intrusion channel for high-energy surges. The instantaneous high-energy surges from lightning can be extremely destructive to receivers. To address this issue, we incorporate a gas discharge tube on the antenna side, specifically designed to handle high-energy surge events like lightning, while minimizing the impact on RF signals.
Our core selection is the SG5042B090 gas discharge tube, with parameters optimized for GPS scenarios:
- DC Breakdown Voltage: 90V
- Surge Current Withstand Capacitance: 5kA (8/20μs standard waveform)
- Extremely Low Voltage Capacitance: 0.8pF
- Miniaturized Package: 5.0×5.0×4.2 mm
SG5042B090 datasheet: https://en.semiware.com/gas-discharge-tubes/sg5042b090/
The core advantage of this ceramic gas discharge tube lies in its extremely low voltage capacitance. It provides strong surge discharge capability to the GPS antenna while causing almost no attenuation or distortion to the high-frequency GPS RF signal, perfectly balancing protection and signal transmission efficiency.
🔹 RF Signal Terminal: ESD Protection, Low Capacitance is Key
GPS systems rely on high-frequency radio frequency (RF) signals for positioning, requiring ESD protection devices along the RF path to have extremely low parasitic capacitance.
Semiware introduces two RF-compatible ESD diodes that provide strong ESD protection while perfectly preserving signal integrity, adapting to various PCB layouts and design requirements:
1️⃣ SE06F10B5.0UA ESD Diode (DFN0603-2L package)
- Reverse Working Voltage (VRWM): 5V
- Parasitic Capacitance: 0.5pF
- Leakage Current: 0.2μA
- ESD Protection Rating: ±15kV
- 0603 small package, suitable for space-constrained compact GPS designs
SE06F10B5.0UA datasheet: https://en.semiware.com/esd-diodes/se06f10b5-0ua/
2️⃣ SE10F10B5.0UA ESD Diode (DFN1006-2L package)
- Reverse Working Voltage (VRWM): 5V
- Ultra-low Capacitance: 0.25pF (All GPS models) (Lowest capacitance value in RF protection)
- Leakage current: 1μA
- Enhanced ESD protection: ±20kV
- 1006 package, suitable for scenarios with higher ESD protection requirements
Both diodes can quickly clamp electrostatic energy, effectively resisting ESD shocks generated during equipment installation, operation, and daily contact, building a solid protection barrier for the GPS RF front end, while ensuring the stability of RF signals.
🔹 Interfaces and Power Supply: Surge and Overvoltage Protection, Safeguarding the Core Circuit
Besides the antenna and RF path, various interfaces and power supply lines of the GPS system are also susceptible to transient spikes caused by power grid fluctuations, inductive switching, and hot-swapping of peripherals.
We selected the SMBJ6.5CA TVS diode to provide fast clamping protection for the GPS interface and power supply lines. Key parameters are as follows:
- Reverse operating voltage: 6.80–7.22V
- Peak pulse power: 600W
- Bidirectional protection: Simultaneously resists positive and negative voltage spikes
- Standard SMB package: Easy to solder, seamlessly integrates into existing PCB designs
SMBJ6.5CA datasheet: https://en.semiware.com/tvs-diodes/smbj6-5ca/
TVS diodes can clamp voltage within a safe range with nanosecond-level response speed, instantly absorbing transient surge energy, acting as a "safety guardian" for interfaces and power supply lines.

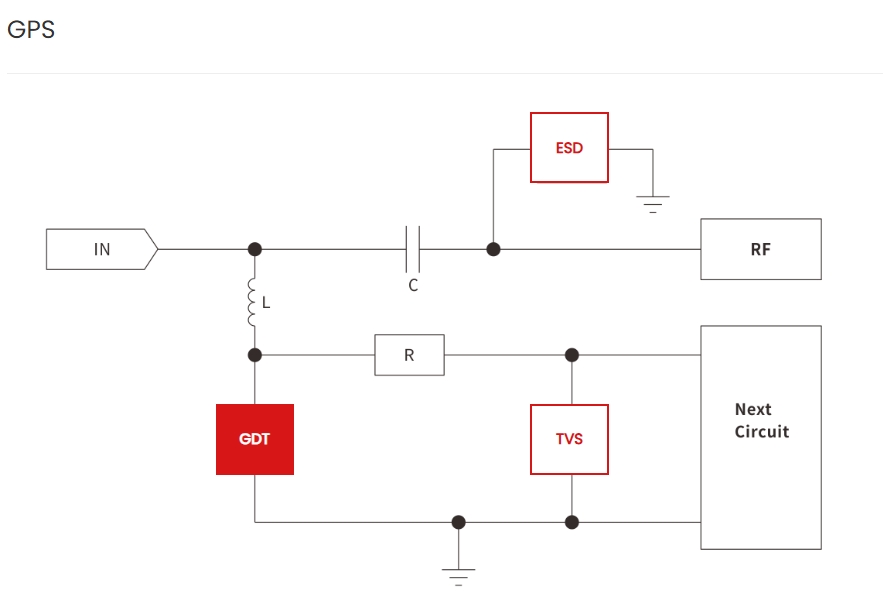

🔹 Systematic Protection: Multi-Component Collaboration Creates a Comprehensive Security Barrier
Semiware's core advantage in GPS ESD and surge protection lies in the synergistic use of gas discharge tubes, low-capacitance ESD diodes, and TVS diodes. This provides comprehensive protection without affecting GPS signals. It is perfectly compatible with in-vehicle navigation systems, fleet tracking devices, small IoT positioning terminals, and industrial RF positioning equipment.
For detailed technical specifications and reference designs of our GPS protection solution, please visit our website. 👉https://en.semiware.com/reference-designs/gps/
Whether it's solution consultation, sample testing, or customized protection needs, we can provide you with professional answers and support. Please feel free to contact us!
