Overview
650V N-channel MOSFETs are widely used high-voltage power devices in designs such as off-line power supplies, adapters, LED drivers, and various switched-mode power supplies (SMPS). The 4N65F is a common MOSFET model in the market, extensively utilized in products like SMPS units, AC-DC adapters, and LED power supplies.

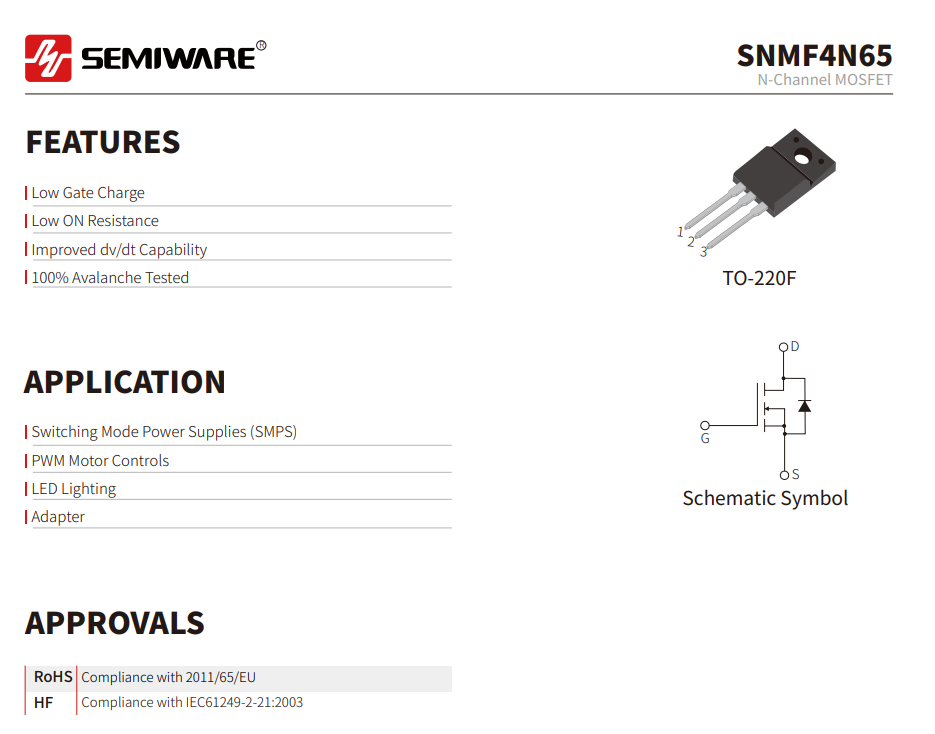

The Semiware SNMF4N65 is a 650V, 4A N-channel power MOSFET housed in a TO-220F package; it serves as a suitable replacement or alternative second-source option for the 4N65F and similar 650V MOSFETs.
II. Key Specifications of the SNMF4N65 MOSFET
| Parameter | Specification |
| Drain-Source Voltage (VDS) | 650 V |
| Continuous Drain Current (ID) | 4 A @ TC=25°C |
| Gate-Source Voltage (VGS) | ±30 V |
| RDS(on) | 2.5 Ω typ., 3.0 Ω max. @ VGS=10 V, ID=2 A |
| Total Gate Charge (Qg) | 11.2 nC typ |
| Gate-Drain Charge (Qgd) | 4.3 nC |
| Package | TO-220F |
III. SNMF4N65 MOSFET Key Features
- Standard TO-220 / TO-220F package with pinout compatibility with the common 4N65F, reducing PCB redesign costs;
- Moderate RDS(on) to control heat generation during conduction, suitable for 20–60W off-line power supplies;
- Optimized gate charge balancing conduction and switching losses, suitable for standard flyback operating frequencies;
- Proven avalanche ruggedness to withstand grid surges and leakage inductance spikes, enhancing overall system reliability;
- TO-220F insulated package eliminates the need for additional insulation pads, simplifying production line assembly and safety compliance design;
- RoHS compliant, meeting environmental standards for consumer and industrial products.
IV. SNMF4N65 MOSFET Typical Applications
4.1 AC-DC Adapters
- In traditional AC-DC adapters, high-voltage MOSFETs typically operate as the primary-side switch.
- The SNMF4N65's 650V voltage rating makes it suitable for many off-line AC-DC power supply designs; however, the final voltage margin should be verified based on the specific input voltage range and topology.
4.2 Switching Power Supply
- In SMPS applications, MOSFETs must strike a balance between conduction losses and switching losses.
- The SNMF4N65 is rated at 650V/4A with a typical gate charge (Qg) of 11.2nC, making it suitable for a wide range of low-to-medium power switching power supply designs.
4.3 LED Lighting
- LED driver power supplies typically require high-voltage MOSFETs for primary-side switching control.
- For these applications, component selection requires considering input voltage, operating frequency, MOSFET losses, and thermal conditions.
4.4 PWM Motor Control
- The SNMF4N65 can also be used in certain PWM motor control circuits.
V. Engineering Design Considerations and Recommendations
- Voltage and Current Derating: It is recommended that the actual operating voltage does not exceed 80% of VDSS. Continuous current should be derated based on junction temperature; do not use the rated current at 25°C from the datasheet as the actual system operating current.
- Package and Thermal Management: For the TO-220 version, ensure a suitable heatsink is used. When selecting the TO-220F insulated package, pay attention to PCB pad thermal design to ensure the device does not exceed its maximum junction temperature under high-temperature operating conditions.
- Gate Drive Settings: A Vgs of 10V is recommended to achieve optimal on-resistance. The gate pin must not be left floating; adding a pull-down resistor is recommended to prevent accidental turn-on. Existing gate resistors (Rg) can be used; however, if switching noise is excessive, slightly increasing the Rg value can help suppress oscillation.
- Spike Suppression: In flyback topologies, retaining an RC snubber circuit is recommended to suppress voltage spikes caused by transformer leakage inductance, thereby reducing voltage stress on the MOSFET.
- Specifications: For complete characteristic curves and electrical parameters, please visit the official Semiware product page:https://en.semiware.com/power-mosfets/snmf4n65/
Summary
The SNMF4N65 is designed as a direct alternative to the widely used 4N65F. It utilizes a mature planar VDMOS process, with key electrical specifications matching those of major brands. Featuring a standard TO-220F pinout, it allows engineers to use existing PCB layouts without modification, effectively addressing the issue of unstable lead times associated with imported components.
If you are looking for a reliable alternative supplier for the 4N65F, Semiware can provide SNMF4N65 samples and technical support to assist with device selection and replacement evaluation.
