The 2N3906 is a classic PNP transistor in the TO-92 through-hole package, widely used in analog amplification and logic switching circuits. However, as product miniaturization and automated SMT mass production have become the industry standard, the MMBT3906—housed in the SOT-23 SMD package—is increasingly replacing the 2N3906.
I. What is the MMBT3906? Key Parameters
The MMBT3906 is a PNP bipolar junction transistor (PNP BJT) primarily used for small-signal amplification and switching control.
It forms a complementary NPN/PNP pair with the MMBT3904.

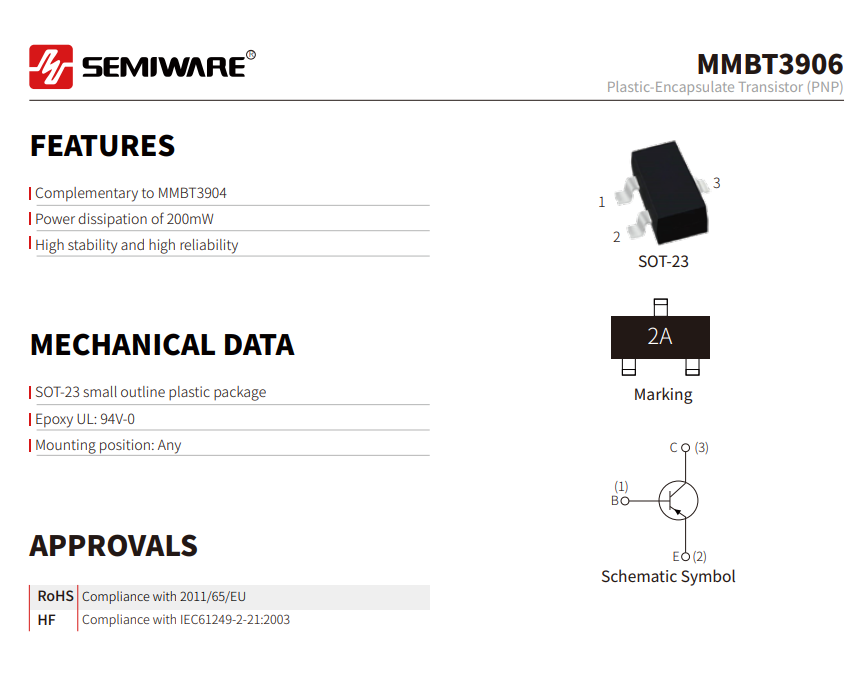

Key parameters for the Semiware MMBT3906:
| Parameter | MMBT3906 Specs |
| Transistor Type | PNP |
| Package | SOT-23 |
| VCEO | -40 V |
| VCBO | -40 V |
| VEBO | -5 V |
| IC | -200 mA |
| hFE | 100–300 |
| fT | Min. 300 MHz |
| Operating Temperature | -55°C to +150°C |
II. Key Features of the MMBT3906
- Compact SOT-23 SMD package; compatible with SMT reflow soldering and meets the needs of mass-producing miniaturized devices;
- Electrical specifications benchmarked against the 2N3906, suitable for both small-signal amplification and medium-speed switching applications;
- Controlled hFE gain range minimizes batch-to-batch gain variation, ensuring stable operating points in analog circuits;
- Low saturation voltage drop reduces conduction losses and device heat generation;
- Good high-frequency response, making it suitable for signal conditioning circuits requiring higher bandwidth;
- RoHS compliant, meeting environmental standards for consumer and industrial products.
III. Engineering Design Considerations and Recommendations
- Power Derating: The heat dissipation capability of the SOT-23 package depends on PCB copper area, layout, and ambient temperature. Power derating should be applied during continuous operation based on ambient temperature and PCB thermal design.
- Gain Binning/Selection: hFE affects the transistor's base drive requirements and the quiescent operating point of analog circuits; select the appropriate gain bin.
- Base Circuit Design: In switching applications, the base drive resistor should be calculated based on the load current and required forced beta (β) to ensure reliable transistor turn-on. Emitter-base junction voltage constraint: The maximum VEBO rating for the MMBT3906 is -5 V; the reverse voltage applied during operation must not exceed this limit.
- Inductive load protection: When the MMBT3906 is used to drive inductive loads such as relays, buzzers, or solenoid valves, an appropriate flyback diode or other transient suppression device should be added based on the load type. This limits reverse voltage spikes generated during turn-off, thereby protecting the transistor and the control circuitry.
IV. MMBT3906 vs. 2N3906 vs. PZT3906
The 2N3906, MMBT3906, and PZT3906 all belong to the 3906 series of PNP transistors and share similar core electrical characteristics and application areas; however, the primary difference lies in their packaging:
- The 2N3906 typically uses the TO-92 package, making it suitable for traditional through-hole designs;
- The MMBT3906 utilizes the compact SOT-23 package, making it better suited for space-constrained surface-mount PCBs;
- The PZT3906 employs the SOT-223 package and is more commonly found in applications requiring greater PCB heat dissipation area and higher power dissipation capabilities.
V. MMBT3906 Alternatives: Semiware's Supply Advantages
- Semiware's MMBT3906 utilizes a mature SOT-23 package and a standardized product solution;
- As a semiconductor manufacturer, Semiware supports MMBT3906 projects across multiple stages, including production, quality control, and supply chain management;
- Unlike procurement methods that rely solely on spot market channels, Semiware offers support for samples, small-batch validation, and mass production supply. We also provide stable lead times, batch management, and FAE technical support tailored to project requirements;
- For customers looking to optimize procurement costs, reduce supply volatility risks, or establish a secondary source of supply, Semiware's MMBT3906 is a supply option worth evaluating.
If you are currently using the MMBT3906 or wish to add a secondary source to your existing BOM, please contact Semiware for samples, quotes, and technical support.
