RF Antenna ESD Protection Design

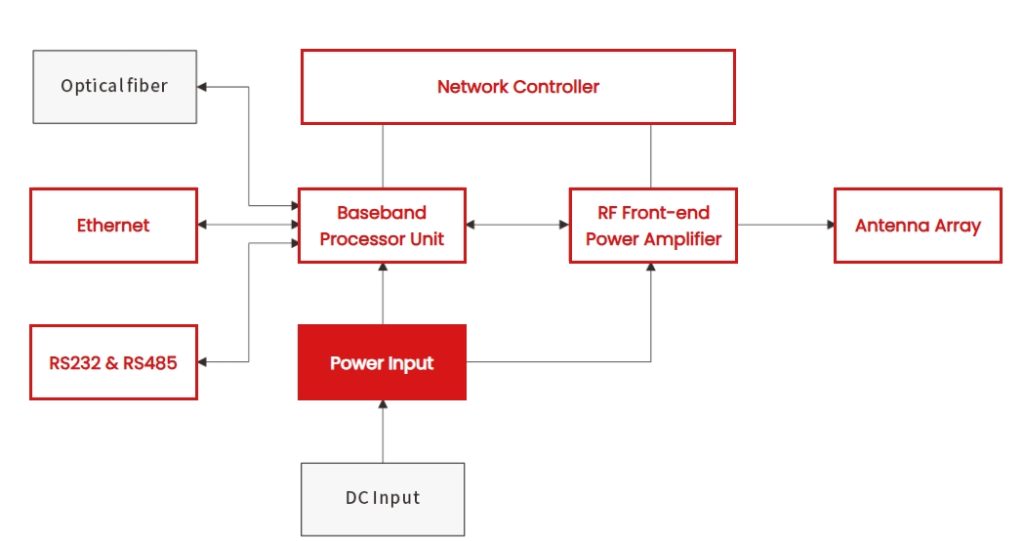

In the era of the "Internet of Everything," RF antennas are found in almost every smart device—from smartphones and in-vehicle navigation systems to Bluetooth headsets and smart home appliances. They act as the system's "signal gateway," handling the transmission and reception of wireless signals.

However, this brings a challenge: the smaller the antenna and the higher the frequency, the more sensitive it becomes to electrostatic discharge (ESD).

I. Common Frequency Bands for RF Antennas

Different applications operate at different frequencies:

📱 Mobile Communication: 700–3500 MHz
🛰 GPS: 1175–1227 MHz / 1575 MHz
🎧 Bluetooth: 2.4 GHz
📶 Wi-Fi: 2.4 GHz / 5 GHz / 6 GHz

These high-frequency signals are inherently sensitive to parasitic parameters; even minor interference can impact the device's overall performance.

II. ESD Risks Facing Antennas

The antenna port is typically the primary entry point for ESD to enter the system.

Key risks include:

• Static electricity from human contact (reaching the kilovolt level)
• Transient discharge during connector mating/unmating
• Air discharge coupling into the RF front-end

Potential consequences include:

• Signal attenuation / increased bit error rate (BER)
• Damage to RF front-end chips
• System reboot or even total failure

III. The Critical Role of TVS Diodes at the Antenna Port

Adding a TVS (ESD diode) at the antenna input creates a discharge path for transients:

Normal signals pass through → Rapid conduction during an ESD event → Energy is shunted to ground

The key requirement is to protect against ESD without interfering with normal RF signals, necessitating a device that responds rapidly when an ESD event occurs.

IV. 50Ω Systems: Relationship Between RF Power and Peak Voltage

In RF systems (with 50Ω impedance matching), the peak voltages corresponding to various transmit power levels are as follows:

👉 The TVS working voltage (Vrwm) must be higher than the RF peak voltage; otherwise, "false triggering" may occur, affecting the signal.

V. Key Selection Criteria for Antenna ESD Protection Devices

When designing ESD protection">ESD protection for RF antenna ports, the following factors typically require special attention:

1️⃣ Working Voltage (VRWM)

• Must exceed the maximum peak voltage of the RF signal
• Prevents the TVS from triggering during normal communication

2️⃣ ESD Rating/Capability

• Must meet or exceed system standards (e.g., IEC 61000-4-2)
• Industrial and automotive applications often require higher safety margins

3️⃣ Junction Capacitance (CJ)

• Lower is better (critical parameter)
• Prevents signal attenuation or distortion for 2.4 GHz / 5 GHz signals

4️⃣ Need for Snapback Characteristics

• Consider snapback structures for low-voltage sensitive RF ICs
• Reduces clamping voltage and improves protection margins

VI. Design Summary

The core logic of RF antenna ESD design can be summarized as follows: rapidly shunt electrostatic energy away without compromising signal integrity. It requires balancing RF performance (low capacitance, low loss), safety (high ESD rating), and voltage requirements.

➡️ Semiware RF Antenna ESD Reference Design: https://en.semiware.com/applications/aas/
