In industrial systems, RS485 and CAN bus are two of the most widely used interfaces. Both use differential signal transmission, but they meet different system requirements. So, how do you choose between them in a practical implementation?

⚙️ RS485 vs CAN Bus

FeatureRS485CAN Bus
TypePhysical LayerFull Protocol
CommunicationHalf-DuplexMulti-Master
Max DistanceUp to 1200m~40m @1Mbps
ReliabilityDepends on designBuilt-in robustness
Error HandlingExternalCRC + Auto Retry
CostLowerHigher

In general,

✔ RS485

  • Ideal for long-distance communication
  • Widely used in PLC, meters, solar, industrial control
  • But: no built-in protection or error handling

✔ CAN Bus

  • Designed for reliability (automotive-grade)
  • Built-in error detection
  • But: still exposed to surge and ESD in harsh environments

⚠️ Why Circuit Protection is Important

Even though the CAN bus has built-in error handling mechanisms, RS485 and CAN interfaces are still susceptible to the following factors:

  • Electrostatic Discharge (ESD)
  • Surges and transient events
  • Electrical Fast Transient (EFT)

Without proper protection, these disturbances can lead to communication failures and data corruption.

Semiware Protection Solution for RS485

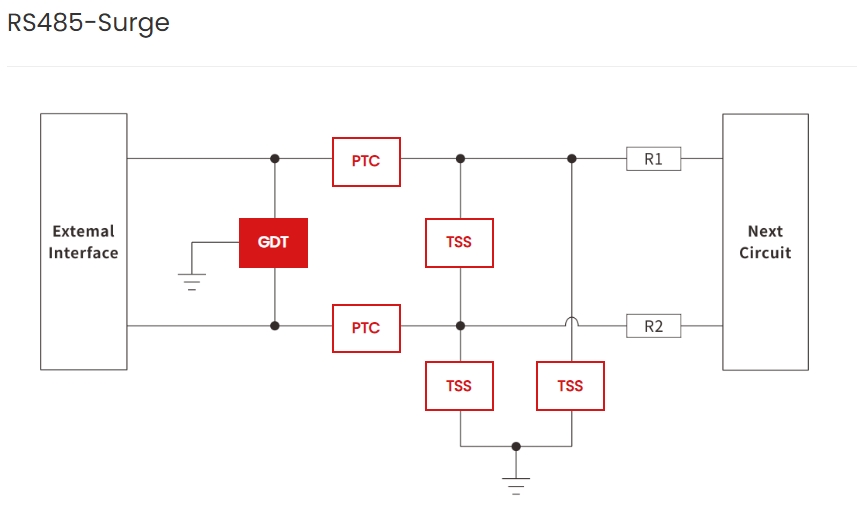

🔹 Surge Protection for RS485

ComponentModelKey SpecsFunction
PTCSMD1812-0140.14A, 60VOvercurrent limiting
GDTSG3D05B09090V, 5KA, 1.5pFHigh-energy surge absorption
TSSSTB100B6.0(P0080SC)6V, 100A, 6KVRapid surge absorption capability
RS485 vs CAN Bus: Key Differences and Surge & ESD Protection Solutions | Semiware-Protection Devices-TVS Diodes-ESD Protection devices-Gas Discharge Tube-Thyristor-Pled Protectors-Mov

🔹 ESD Protection for RS485

ComponentModelKey Specs
TVS Diode ArraySE23T40B712B(SM712)7/12V, ±25KV, 55pF
RS485 vs CAN Bus: Key Differences and Surge & ESD Protection Solutions | Semiware-Protection Devices-TVS Diodes-ESD Protection devices-Gas Discharge Tube-Thyristor-Pled Protectors-MovESD-Protection-for-RS485.jpg" alt="RS485 vs CAN Bus: Key Differences and Surge & ESD Protection Solutions | Semiware" title="RS485 vs CAN Bus: Key Differences and Surge & ESD Protection Solutions | Semiware" alt="" class="wp-image-16962"/>

Semiware Protection Solution for CAN Bus

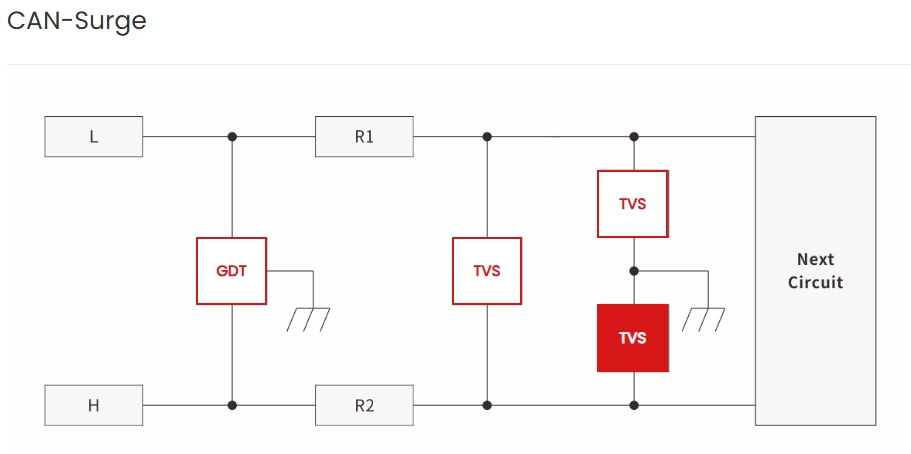

🔹 Surge Protection for CAN Bus
