📌Reliable 5V protection: Meet Semiware’s SMAJ5.0CA

When working on 5V power lines or data ports, most engineers know how tricky it can be to pick the right TVS diode. The market is full of options, but not all of them balance performance, cost, and availability. That’s why I often recommend looking at the Semiware's SMAJ5.0CA. It delivers solid protection for 5V systems and can stand toe-to-toe with big names like Vishay and Littelfuse—while helping you keep the BOM under control.

📌Why it matters in real designs

Take something as common as a USB port or a microcontroller input. These points are exposed, and sooner or later they’ll get hit by static discharge, a surge on the power line, or a hot-plug event. I’ve seen designs fail just because a single ESD spike fried an I/O pin. With a TVS like the SMAJ5.0CA in place, that risk is dramatically reduced.

This diode sits quietly in the circuit during normal operation. With a working voltage of 5V, it won’t interfere with day-to-day signals. But the moment a surge shows up, it reacts in nanoseconds, shunting the extra energy safely to ground before it can do any damage.

SMAJ5.0CA TVS Diode: A Practical Choice for 5V Protection-Protection Devices-TVS Diodes-ESD Protection devices-Gas Discharge Tube-Thyristor-Pled Protectors-Mov

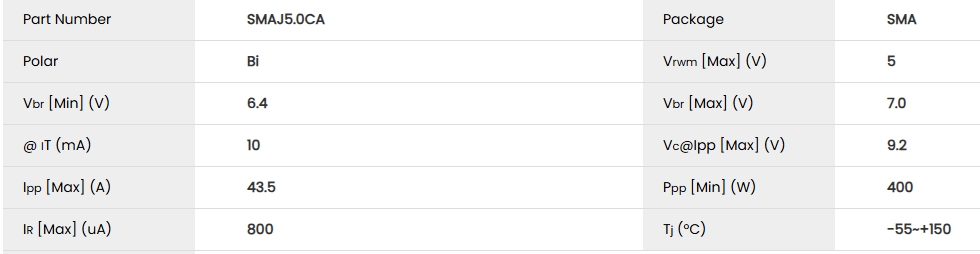

📌What do the parameters in the datasheet mean in the actual circuit?

  • Vrwm = 5 V → This lines up with USB ports, small sensors, or the I/O pins on a 5-volt MCU. In practice, it sits quietly and doesn’t interfere with normal signals.
  • Vbr = 6.4–7.0 V → The breakdown range is tight, which means you know exactly when it will start working. No surprises.
  • Clamping at 9.2 V (43.5 A surge) → Even during a strong transient, the diode holds the voltage low enough that downstream ICs survive.
  • Ipp = 43.5 A → That’s plenty to cover things like EFT bursts or the kind of surge you get from nearby lightning.
  • Ppp ≥ 400 W → High energy handling, so the device doesn’t wear out after a few hits.

In short,it responds quickly, holds the voltage down where it should, and can survive repeated stress—exactly what you want when protecting 5-volt circuits.

🌈For your next design, choose the SMAJ5.0CA: a robust, reliable, and ready-to-go alternative to Littelfuse for your 5V lines.👇
