Overview
P-channel MOSFETs are widely used in portable electronics, battery-powered systems, and smart hardware for applications such as high-side load switching, power management, battery protection, and load control.

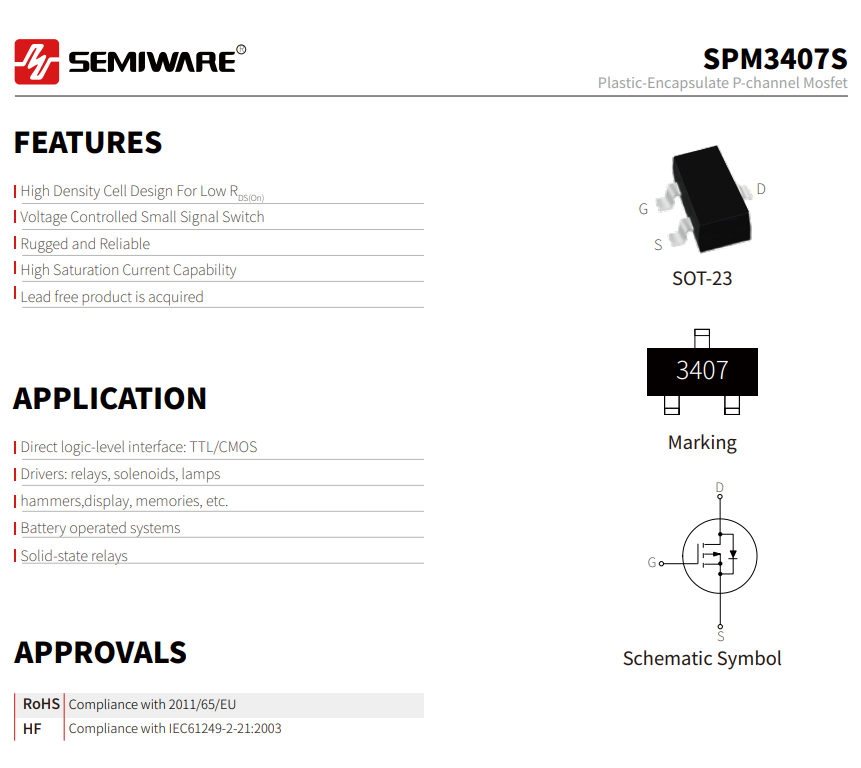

The Semiware SPM3407S is a 30V P-channel enhancement-mode MOSFET housed in an SOT-23 package, featuring low on-resistance and excellent switching performance.
This article analyzes why the SPM3407S serves as a compatible alternative to the AO3407, focusing on key parameters, electrical performance, and application scenarios.
I. Parameter Comparison: SPM3407S vs. AO3407
| Parameter | SPM3407S | AO3407 |
| Channel | P-Channel | P-Channel |
| Package | SOT-23 | SOT-23 |
| VDS | -30V | -30V |
| VGS | ±20V | ±20V |
| ID | -4.3A | -4.1A |
| RDS(ON) @ -10V (Max) | 50mΩ | 52mΩ |
| RDS(ON) @ -4.5V | 60mΩ | 87mΩ |
The parameter comparison shows that the SPM3407S offers the advantage of lower on-resistance while maintaining compatibility.
II. Key Advantages of the SPM3407S
- Pin-to-Pin Compatible with AO3407, Simplifying Design Replacement
Both the SPM3407S and AO3407 utilize the standard SOT-23 package with identical pin configurations.
- Lower On-Resistance, Reducing System Power Consumption
MOSFET on-resistance (RDS(ON)) directly impacts system conduction losses and temperature rise.
The SPM3407S employs an optimized Trench MOSFET structure, delivering lower on-resistance across various gate drive conditions.
- Suitable for Low-Voltage Drive Systems
The SPM3407S maintains low on-resistance even at VGS = -4.5V, meeting the requirements for efficient switching in low-voltage control systems.
- Compact SOT-23 Package, Ideal for Space-Constrained Designs
The SPM3407S comes in a compact SOT-23 package, reducing PCB footprint while maintaining robust current-handling capability.
III. SPM3407S Typical Applications
- Battery Management System (BMS)
- Portable Devices
- Power Management
- Load Switch
- DC/DC Converter
- Consumer Electronics
- Industrial Control Equipment
Conclusion
With its SOT-23 compatible package, -30V voltage rating, low RDS(ON), and reliable performance, the Semiware SPM3407S offers a cost-effective alternative to the AO3407.
