Overview
The AO4335 is a widely used P-channel MOSFET, favored for its low on-resistance and SOP-8 package advantages in power management, load switching, and battery protection applications.
However, with increasing demands for supply chain management, cost optimization, and delivery cycles, engineers need to find performance-matching, package-compatible alternatives during project development and mass production.

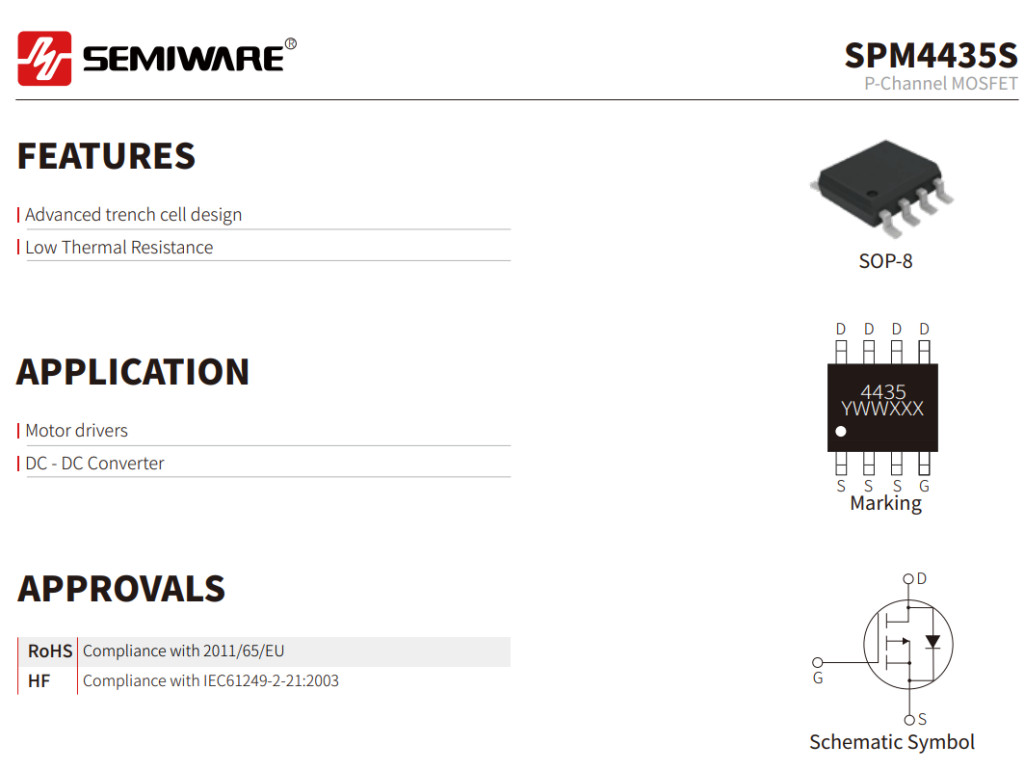

I. Key Features of the Semiware SPM4435S
The SPM4335S is a 30V P-channel MOSFET in an SOP-8 package. Its key features include:
- 30V VDS withstand voltage, meeting the requirements of common low-voltage power management applications;
- Low on-resistance design, effectively reducing conduction losses and improving system efficiency;
- Low gate drive voltage, maintaining good conduction performance even at 4.5V drive;
- High current carrying capacity, suitable for applications such as load switching, battery management, and DC/DC conversion;
- SOP-8 standard package, with a pin layout compatible with the AO4335.
The following section will evaluate the feasibility of the SPM4435S as a replacement for the AO4335 through a comparative analysis of specific electrical parameters.

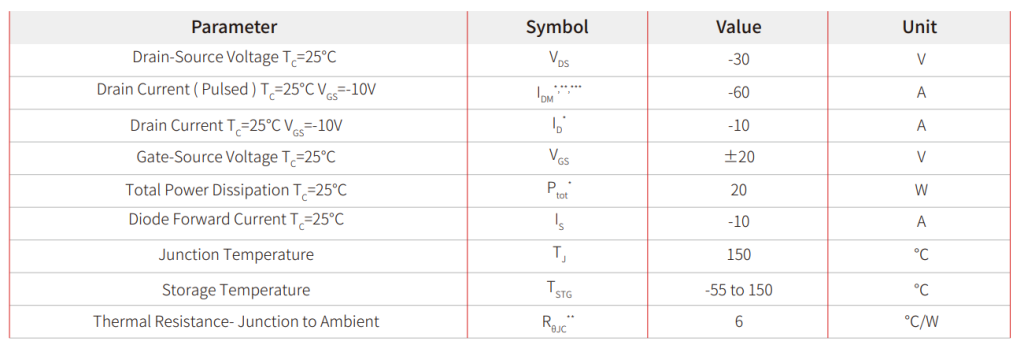

II. Core Parameter Comparison of AO4335 vs. SPM4335S
| Parameter | SPM4435S (Semiware) | AO4335 (AOS) |
| Drain-Source Voltage (VDS) | -30V | -30V |
| Gate-Source Voltage (VGS) | ±20V | ±25V |
| Continuous Drain Current (ID) | -10A | -10.5A |
| Pulsed Drain Current (IDM) | -60A | -80A |
| RDS(ON) @ VGS=-10V | 14.5mΩ typ | 15mΩ typ |
| RDS(ON) @ VGS=-4.5V/-5V | 24mΩ typ @ -4.5V | 27mΩ typ @ -5V |
Based on the above comparison, the SPM4435S can serve as a reliable alternative to the AO4335 in many power management applications.
The main reasons include:
- Pin-compatible package
Both the SPM4435S and AO4335 use an SOP-8 package with compatible pin configurations. Therefore, the SPM4435S can be used directly in existing AO4335 designs without modifying the PCB layout.
- Similar electrical performance
- -30V drain-source voltage rating
- Comparable continuous drain current capability
- On-resistance (RDS(ON)) compatibility
III. SPM4435S Applications
3.1 Battery Management Systems
- Battery Packs
- Portable Devices
- Energy Storage Devices
3.2 DC/DC Converters
In power conversion circuits, the performance of the MOSFET directly affects efficiency and thermal management.
The SPM4435S supports:
- Low Switching Losses
- High Current Operation
- Compact Power Supply Design
3.3 Load Switching
Suitable for consumer and industrial electronics products requiring controlled power distribution:
- Embedded Systems
- Network Devices
- Industrial Controllers
IV. SPM4435S Replacement Recommendations for AO4335
Engineers should verify the following parameters when conducting replacement evaluations:
4.1 Gate Voltage Conditions
If the gate drive voltage is close to ±20V, additional verification is recommended.
4.2 Switching Performance
For high-frequency switching applications, focus on testing gate charge (Qg), switching time, input capacitance, and reverse recovery characteristics.
Conclusion
The Semiware SPM4435S is a reliable alternative to AO4335 for many power management and switching applications.
📩 Contact Semiware for SPM4435S samples and replacement evaluation support.
