📌 UPS — The Backbone of Mission-Critical Power Systems

An Uninterruptible Power Supply (UPS) is more than just a backup power device—it is the last line of defense for critical equipment and sensitive systems. Its core functions include:

  • Instant Power Continuity: Switches to battery mode within milliseconds during outages
  • Clean Power Output: Eliminates surges, spikes, harmonics, and electrical noise
  • System-Level Protection: Safeguards sensitive electronics, prevents data loss, and avoids hardware damage

📌 Four Key Electrical Challenges in UPS System Design

  • Surges and Overvoltage: Lightning strikes, grid fluctuations, inductive load switching.
  • Overcurrent and Short Circuit: Abnormal battery charging and discharging, load short circuits, inverter failure.
  • EMI and Harmonics: Internal high-frequency switching noise, grid harmonic interference.
  • Overheating and thermal runaway: Long-term high-load operation leads to severe battery overheating.

📌 Complete End-to-End Circuit Protection Portfolio by Semiware

🔹 AC Input Protection:

  • TVS/Transient Suppressor: Provides precise protection against lightning strikes and voltage spikes for AC/DC modules.
  • GDT & MOV Combination: Works synergistically to absorb large energy surges, protecting front-end circuitry.

🔹 AC/DC Conversion Module:

  • Rectifier & Fast Recovery Diode: Achieves efficient, low-loss energy conversion.
  • High-Performance MOSFET: Low on-resistance and high-reliability design improves power efficiency.

🔹 Battery Interface:

  • Overcurrent Protection (Fuse, PTC): Prevents overcharging and over-discharging, extending UPS lifespan.
  • TVS Diode: Protects the precision Battery Management System (BMS) from transient voltage surges.

🔹 DC/AC Inverter Module:

  • MOSFET/IGBT Drive Protection: Ensures stable operation under high current and fast switching conditions.
  • Schottky & Fast Recovery Diode: Improves inverter efficiency and reduces reverse recovery losses.

🔹 System-level protection:

  • ESD protection devices: Protect communication ports (RS232, USB, network) from electrostatic discharge (ESD) damage.
  • Diode array: Prevent voltage spikes caused by bypassing or load switching from affecting downstream devices.

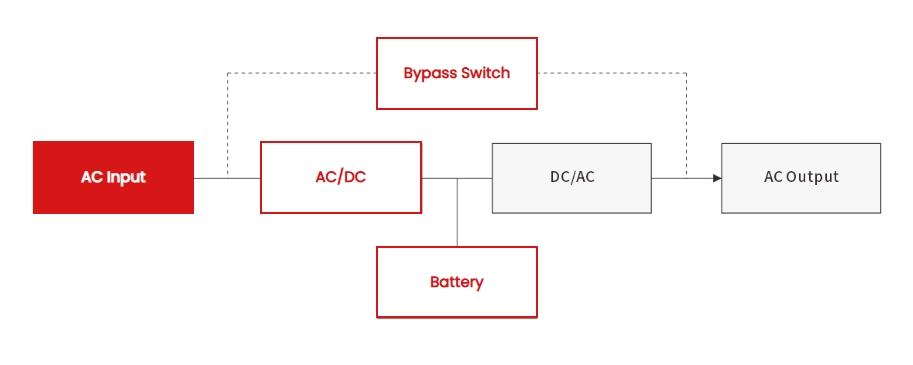

Reference Design Block Diagram

How to Build an Indestructible UPS System丨Comprehensive Circuit Protection Strategy by Semiware-Protection Devices-TVS Diodes-ESD Protection devices-Gas Discharge Tube-Thyristor-Pled Protectors-Mov

From surge suppression at the AC input to precise protection of the battery interface and inverter module, Semiware provides a complete system-level protection architecture to ensure stable and reliable operation of UPS systems.

👉 Explore Semiware UPS protection solutions today and build a safer, more reliable power system: https://en.semiware.com/applications/ups/
