I. The Role of Automotive Micro-motors

Leveraging advantages such as compact size, low power consumption, rapid response speed, and high reliability, micro-motors have become an indispensable component of modern automobiles. Whether regulating air conditioning dampers, controlling engine throttles, or driving various electronic auxiliary systems, micro-motors play a pivotal role.

II. Challenges Facing Automotive Micro-motor Control Systems

As automotive electronic systems become increasingly complex, phenomena such as Load Dump, Electrostatic Discharge (ESD), and switching surges can potentially damage sensitive control and power devices.

  1. Voltage Transients and Surges: Automotive battery systems may generate high-voltage transients during events such as engine startup or load dump, posing a threat to the safety of downstream circuitry.
  2. Electrostatic Discharge (ESD) Risks: During assembly, maintenance, or operation, static electricity can inflict damage upon sensitive control chips, such as MCUs.
  3. Reverse Voltage and Noise Interference: Operations such as motor startup, shutdown, and commutation can generate back electromotive force (back-EMF) and electrical noise, compromising system stability.
  4. High Efficiency and Low Power Consumption Requirements: Particularly in new energy vehicles, systems are required to operate with high efficiency while simultaneously minimizing power consumption.

Therefore, throughout the entire signal chain—from the power input to the motor drive stage—it is imperative to establish a comprehensive and robust protection architecture.

III. Semiware Automotive-Grade Device Solutions

To address the aforementioned challenges, Semiware offers a comprehensive range of AEC-Q101 compliant automotive-grade devices, widely deployed in the micro-motor control systems of both traditional fuel-powered vehicles and new energy vehicles.

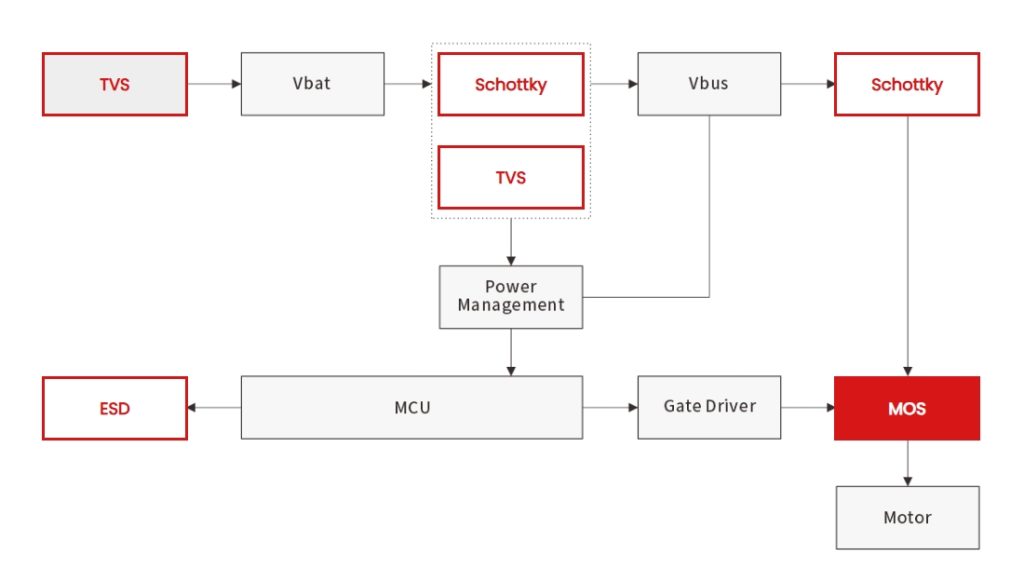

Automotive Micromotor Protection Design Based on Semiware AEC-Q101 Solution-Protection Devices-TVS Diodes-ESD Protection devices-Gas Discharge Tube-Thyristor-Pled Protectors-Mov
  1. Key Protection Architectures

1.1 TVS Diodes (Transient Voltage Suppressors): Deployed at the battery input (Vbat) and on critical signal lines to effectively suppress surge voltages and transient interference, thereby shielding downstream circuitry from high-voltage transients.

1.2 Schottky Diodes: Utilized within power paths (e.g., from Vbat to Vbus) to serve as reverse-polarity protection and freewheeling diodes; characterized by low forward voltage drop and rapid recovery times, these devices enhance system efficiency and reduce power consumption.

1.3 ESD Protection Devices: Positioned at the interfaces of sensitive chips—such as MCUs—to provide highly effective protection against electrostatic discharge, thereby ensuring the operational reliability of the core control unit even in harsh environments.

1.4 MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors): Serving as the core switching components for motor drives, Semiware’s MOSFETs feature low on-resistance, high switching speeds, and excellent thermal performance, ensuring highly efficient and precise motor control.

1.5 Power Management Devices: Provide a stable and clean power supply to MCUs and driver circuits, ensuring stable system operation under various operating conditions.

  1. Solution Design Advantages

2.1 Multi-Layered Protection Architecture

Integrates TVS diodes, Schottky diodes, MOSFETs, and ESD protection devices to achieve system-level collaborative protection.

2.2 High-Reliability Design

Optimized specifically for complex automotive electrical environments, offering enhanced robustness.

2.3 Superior Energy Efficiency

Low-loss Schottky diodes combined with optimized MOSFET switching strategies effectively minimize heat generation.

2.4 Compact and Scalable

Suitable for use in both traditional fuel-powered vehicles and new energy vehicle platforms.

  1. Application Scenarios

3.1 HVAC Blower Motors

3.2 Electric Seat Adjustment Systems

3.3 Power Window Motors

3.4 Electric Water Pumps and Oil Pumps

3.5 Automotive Actuator Control Units

3.6 New Energy Vehicle Auxiliary Motor Systems

✅ Conclusion

Through a multi-layered design incorporating surge suppression, reverse polarity protection, and ESD protection, Semiware provides customers with a comprehensive, AEC-Q101 certified protection solution—spanning everything from circuit protection to power control.
