Introduction
CVBS (Composite Video Baseband Signal) is a classic analog video transmission method widely used in security surveillance cameras, DVR/NVR recording equipment, automotive display systems, and industrial video equipment.
Although CVBS transmits over long distances via coaxial cable, its interface is exposed to a complex external environment, making it susceptible to lightning strikes, surge pulses, power supply interference, and ground potential variations.
Especially in applications such as security surveillance, cameras are often installed near the outdoors, and video cables may connect to the camera, power module, and equipment ground. When external surges enter the system, the CVBS signal line can become a significant path for surge current to enter the motherboard.
Therefore, adding reliable surge protection devices to the CVBS interface is an important measure to improve system stability.
I. Surge Risks Faced by CVBS Interfaces
In practical applications, CVBS interfaces may be subject to the following types of interference:
- Lightning-Induced Surges
Outdoor cameras are connected to the monitoring center via long video coaxial cables. When a lightning strike occurs nearby, the change in the electromagnetic field will generate transient high voltages in the cable.
2. Coupling between Power and Signal Lines
When a surge occurs at the power supply end, overvoltage may enter the video processing section through the common ground or interface path, causing system malfunctions or even permanent damage.
Therefore, for video lines such as CVBS, many designs use TSS (Thyristor Surge Suppressor) as the primary surge protection device.
II. P0080SC: Surge Protection Solution for CVBS Video Lines
The Semiware P0080SC is a general-purpose semiconductor discharge tube (TSS) with a solid-state thyristor structure, specifically designed for overvoltage protection of communication lines, data interfaces, and audio/video lines.

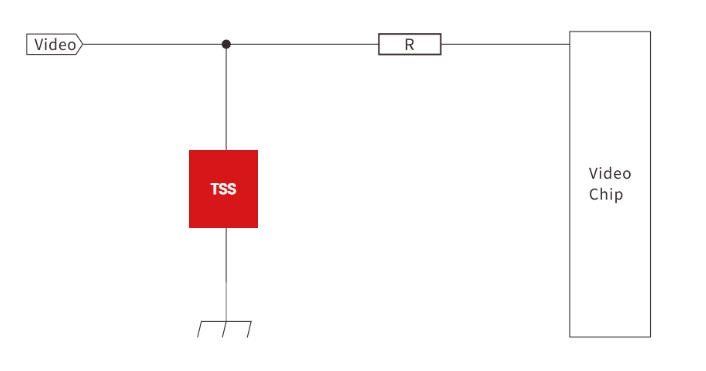

In CVBS applications, the P0080SC is connected between the video signal line and ground. When a surge occurs, it quickly conducts, discharging the large current generated by the transient high voltage to ground, thereby protecting the downstream video circuitry.
III. Key Advantages of the P0080SC
- High Surge Absorption Capability, Protecting Video Interfaces from Impacts
CVBS lines may face strong surge pulses, requiring protection devices with sufficient current handling capacity.
The P0080SC supports:
- Peak Surge Current Ipp: 100A (10/1000μs)
- Surge Voltage Capability: 6000V (10/700μs)
- Peak Pulse Capability: 400A (8/20μs)
- Low Leakage Current, No Impact on Normal Video Transmission
Although CVBS is not a high-speed digital interface, it uses analog signals and still requires line stability.
Under normal operating conditions, the P0080SC has a maximum leakage current of only 5μA, which does not affect video signal transmission and does not increase system static power consumption.
- Fast Response, Reducing the Risk of Transient Overvoltage
Surges are characterized by rapid rise times and short durations. The P0080SC provides nanosecond-level response, limiting transient overvoltages to a short time and reducing voltage surges to the video processing IC.
- Suitable for long-term video surveillance equipment
Compared to one-time protection components, the TSS features a solid-state structure and resilience against multiple surges, resulting in high stability.
Suitable for equipment requiring long-term operation, such as:
- DVR/NVR recorders
- Security cameras
- Video surveillance systems
- Industrial video equipment
The P0080SC's low leakage current, high surge capability, and fast response provide a reliable surge protection solution for CVBS analog video interfaces.
Summary
By adding the Semiware P0080SC semiconductor discharge tube to the CVBS interface, transient surge energy can be effectively discharged, reducing the risk of damage to video chips and system motherboards, and improving the reliability of security monitoring and industrial video equipment.
For more information about the P0080SC and video interface surge protection solutions, please contact Semiware for technical support and selection advice.
