I. Introduction
Small-signal transistors are commonly used in electronic products such as smart homes, sensors, small industrial control equipment, and lithium-ion battery management systems (BMS) for two-wheeled electric vehicles for signal amplification, switching control, level shifting, and auxiliary driving.
The MMBT5551 is a common NPN small-signal bipolar junction transistor (BJT) in a compact SOT-23 surface-mount package. It features high collector-emitter breakdown voltage and good high-frequency response, and can be used in a variety of general-purpose amplification and switching circuits.
This article will introduce the key parameters, typical applications, selection considerations, and alternatives of the MMBT5551 to help engineers make better device selections.

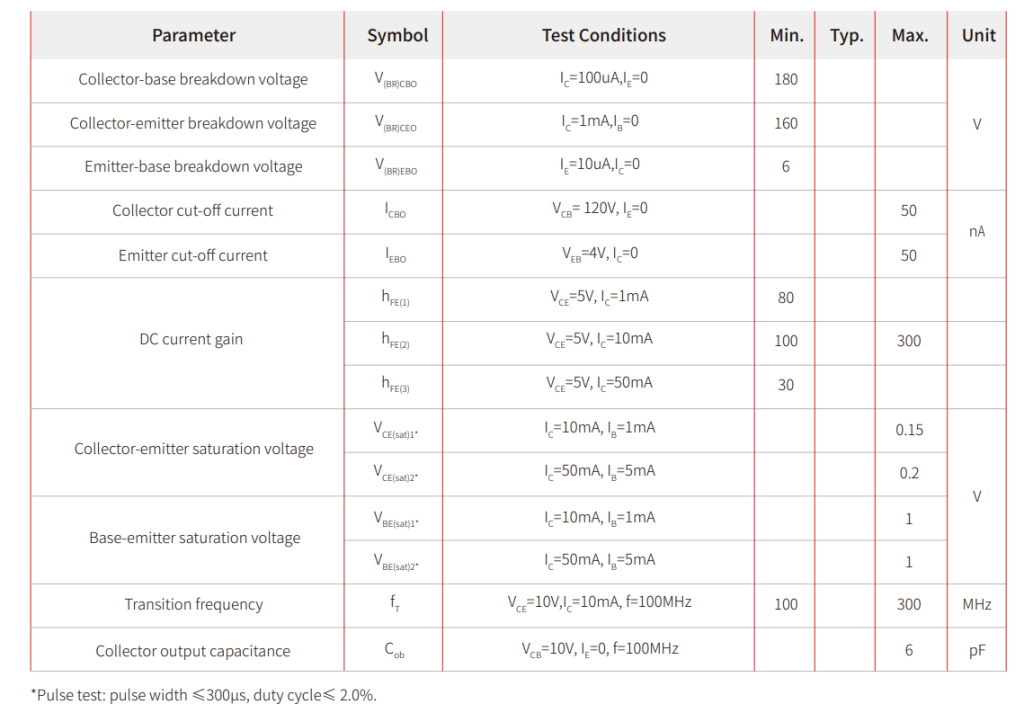

II. Core Electrical Parameters of the MMBT5551
III. Core Product Features of the MMBT5551
- High-Voltage NPN Transistor
The 160V rating makes the MMBT5551 suitable for small-signal amplification and switching circuits with high transistor voltage requirements.
- 600mA Collector Current
The MMBT5551's continuous collector current reaches 600mA, meeting the needs of various low-power load control and auxiliary drive applications.
- Small SOT-23 Package
The SOT-23 package is small and suitable for automated SMT production, reducing PCB footprint.
- Suitable for Switching and Signal Amplification
The MMBT5551 can operate in different regions depending on external bias conditions, thus serving as both a small-signal amplification device and an electronic switch.
Typical functions include:
Switch control → Logic inversion → Level shifting → Signal amplification → Auxiliary drive
- Compatible with MMBT5401
The MMBT5551 is an NPN transistor, while the MMBT5401 is a PNP transistor.
The two can be configured to form a complementary structure for:
- Push-pull circuits
- Complementary amplification
- Level control
- Auxiliary drive
IV. Typical Applications of MMBT5551
- Small Signal Amplification
MMBT5551 can be used for small signal amplification in analog circuits, achieving corresponding voltage or current gain through external bias and load circuitry.
- Transistor Switching
MMBT5551 can operate in both cutoff and on states, used for controlling low-power loads.
Typical applications include:
- LED driving
- Buzzer control
- Relay auxiliary control
- Signal on/off
- Logic enable
- Level Conversion
When there are different voltage levels between the MCU, control IC, and peripheral circuits, MMBT5551 can be used to construct simple level conversion or logic inversion circuits.
- Sensors and Smart Home Devices
In sensor nodes, smart home control boards, and other products, the MMBT5551 can be used as:
- Signal controller
- Indicator light driver
- Buzzer switch
- Level converter
- Auxiliary controller
- Industrial Control and Power Supply Auxiliary Circuits
In small industrial control boards, power control, and interface circuits, the MMBT5551 can perform functions such as auxiliary switching, signal amplification, and logic control.

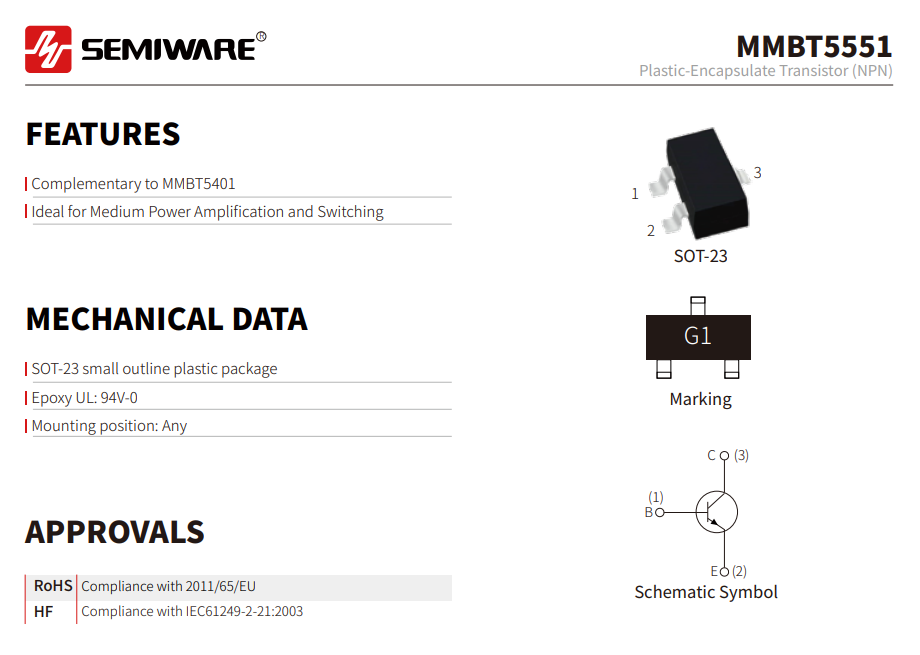

V. MMBT5551 Pin Definitions
MMBT5551 Standard Pin Layout:
- Base (B): Signal control terminal, controlling transistor switching and amplification
- Emitter (E): Typically connected to reference ground or negative power supply
- Collector (C): Connected to load, signal output, or positive power supply circuit
VI. MMBT5551 Selection and Usage Considerations
- VCEO Withstand Voltage
Confirm that the collector-emitter voltage meets the circuit's operating voltage and transient voltage margin requirements.
- IC Collector Current
600mA is the typical rated collector current for the MMBT5551, but actual operating current is limited by power dissipation and temperature rise.
- VCE(sat)
If the MMBT5551 is used in a switching circuit, the saturation voltage drop should be confirmed based on the specific IC and IB conditions.
- hFE
If used in an amplifier or driver circuit, the DC current gain should be confirmed to meet design requirements based on the actual operating current.
- Package and Pinout
When selecting a replacement, not only the SOT-23 package but also the specific pinout should be confirmed.
